Wireless Door Lock Control System - Diagnostic Codes & Symptom Tests
>>
Wireless Door Lock Control System
>>
No Answer-Back [12/2019 - 11/2023]
>>
Wiring Diagram
No Answer-Back [12/2019 - 11/2023]: Wiring Diagram

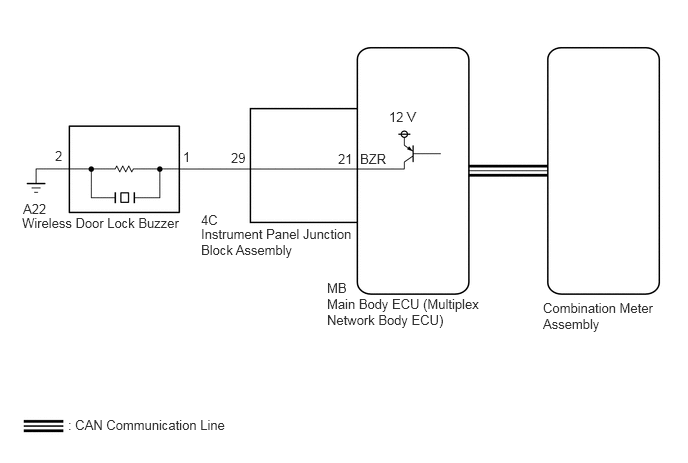

Fig 1: No Answer-Back [12/2019 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
