Parts Location [11/2023 - ]: Illustration

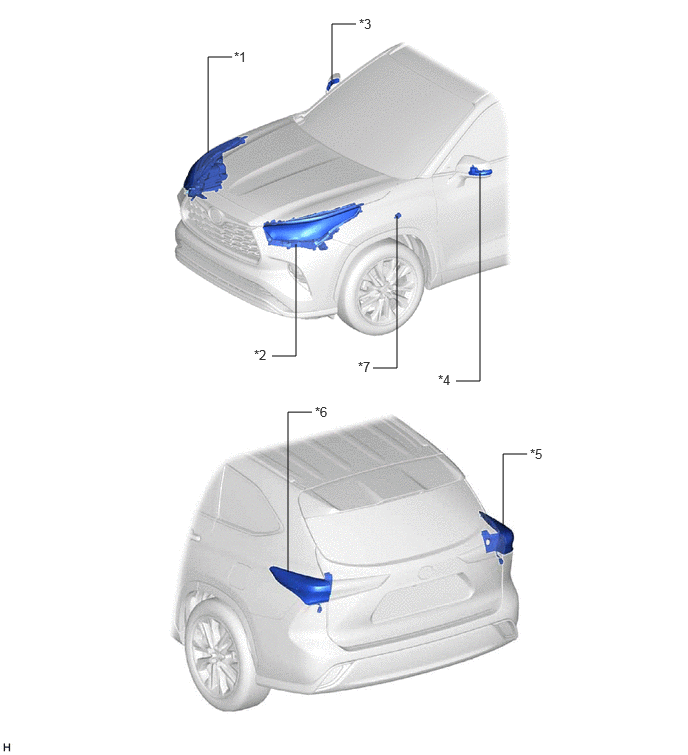

| *1 | HEADLIGHT ASSEMBLY RH - TURN SIGNAL LIGHT |
*2 | HEADLIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT |
*6 | REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
| *7 | WIRELESS DOOR LOCK BUZZER | - | - |
| *A | w/ Power Back Door System | *B | w/o Power Back Door System |

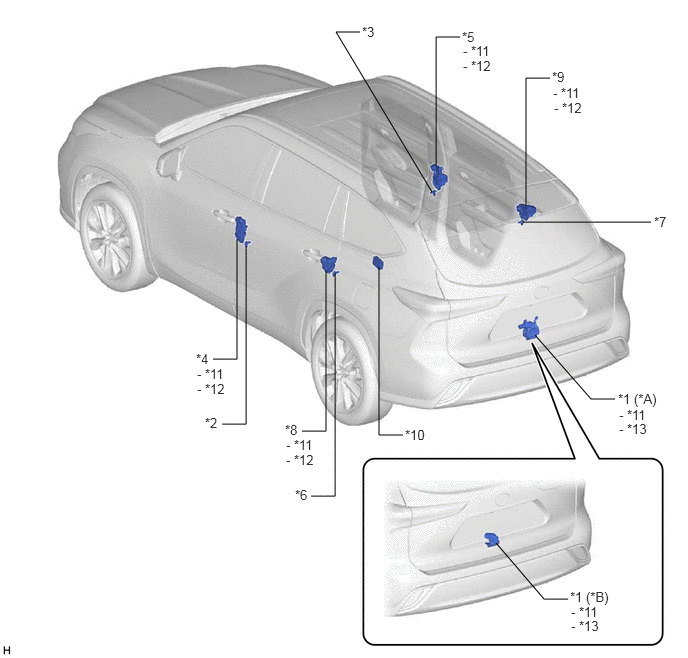

| *1 | BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH | *10 | ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER |
| *11 | DOOR LOCK MOTOR | *12 | DOOR UNLOCK DETECTION SWITCH |
| *13 | BACK DOOR COURTESY LIGHT SWITCH | - | - |
