Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

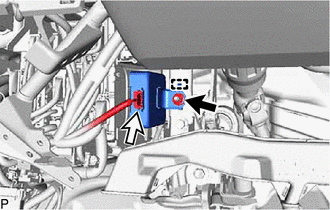

    1. Remove the nut.
      GTY877854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.
    3. Disconnect the connector to remove the vehicle approaching speaker controller.
