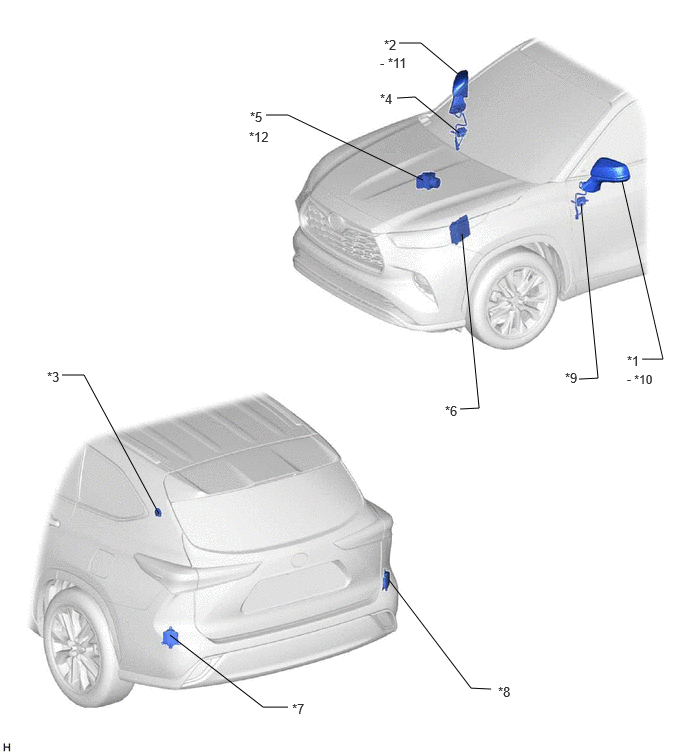

Parts Location [12/2019 - 11/2023]: Illustration
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | RCTA BUZZER (BLIND SPOT MONITOR BUZZER) | *4 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory System) |
| *5 | BRAKE ACTUATOR ASSEMBLY (for HV Model) - NO. 2 SKID CONTROL ECU |
*6 | ECM (for Gasoline Model) |
| *7 | BLIND SPOT MONITOR SENSOR LH (MASTER) | *8 | BLIND SPOT MONITOR SENSOR RH (SLAVE) |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) | *10 | OUTER MIRROR LH |
| *11 | OUTER MIRROR RH | *12 | BRAKE ACTUATOR ASSEMBLY (for Gasoline Model) - SKID CONTROL ECU |

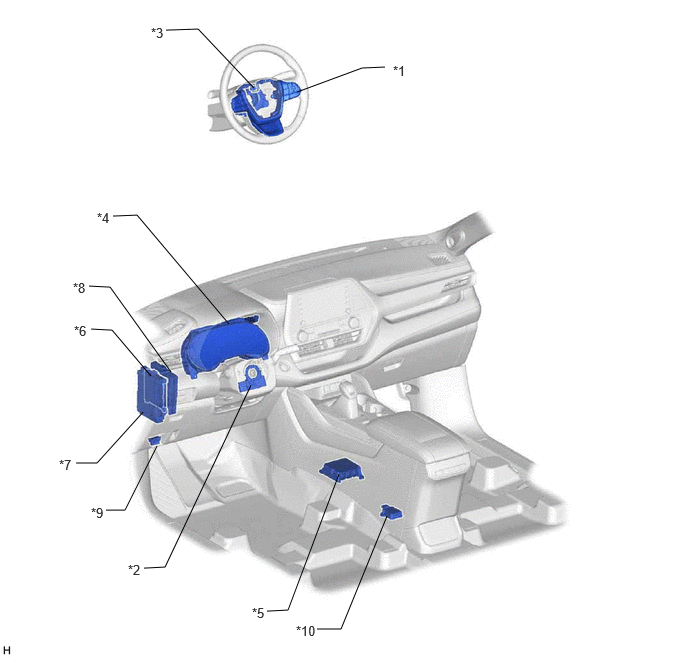

| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | STEERING SENSOR |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
| *5 | AIRBAG SENSOR ASSEMBLY (for Gasoline Model) - YAW RATE AND ACCELERATION SENSOR |
*6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE - ECU-IG1 NO. 4 FUSE |
*8 | HYBRID VEHICLE CONTROL ECU (for HV Model) |
| *9 | DLC3 | *10 | YAW RATE SENSOR (for HV Model) - ACCELERATION SENSOR |
