Installation [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

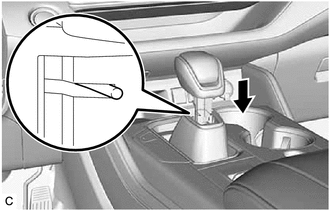

    1. Install the shift lever knob sub-assembly to the transmission floor shift assembly.
      GTY917675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

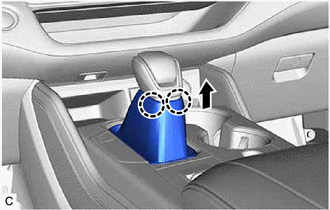

    2. Engage the 2 claws to connect the shifting hole cover sub-assembly as shown in the illustration.
      GTY943712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the shifting hole cover sub-assembly does not twist after installing the shift lever knob sub-assembly.
