Components [11/2023 - ]
WARNING: This page is about a different variant/trim than selected.

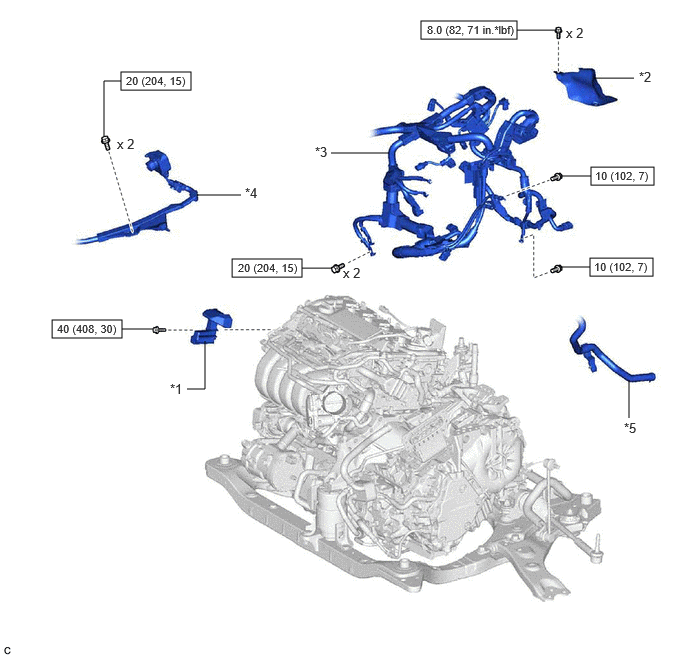

Fig 1: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications [11/2023 - ] (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL DELIVERY GUARD | *2 | STEERING GEAR HEAT INSULATOR |
| *3 | ENGINE WIRE | *4 | HV AIR CONDITIONING WIRE |
| *5 | WATER HOSE | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

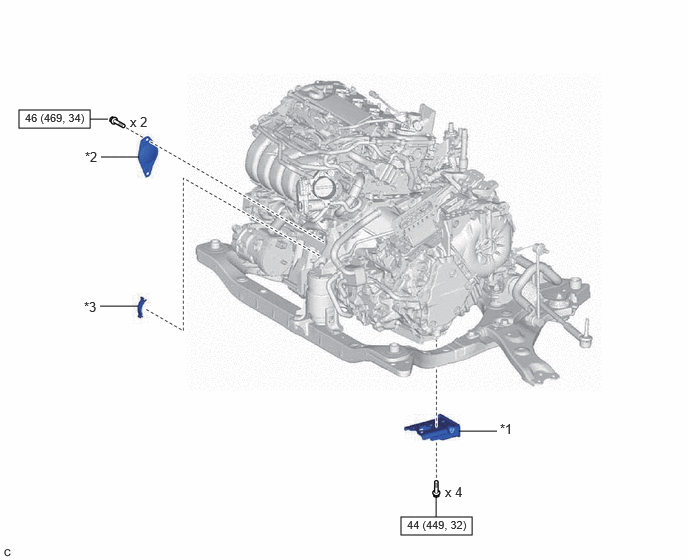

Fig 2: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications [11/2023 - ] (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSAXLE UNDER STOPPER BRACKET | *2 | STARTER HOLE INSULATOR |
| *3 | FLYWHEEL HOUSING SIDE COVER | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

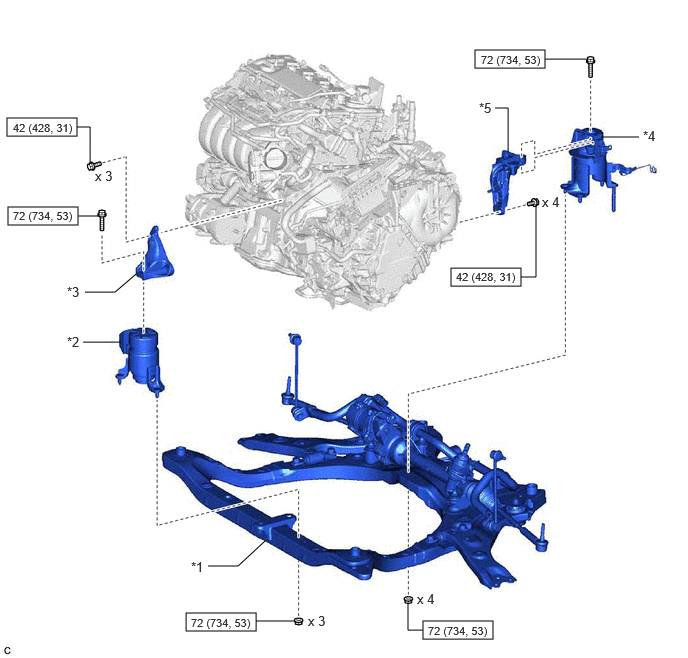

Fig 3: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications [11/2023 - ] (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FRAME ASSEMBLY | *2 | FRONT ENGINE MOUNTING INSULATOR |
| *3 | FRONT ENGINE MOUNTING BRACKET | *4 | REAR ENGINE MOUNTING INSULATOR |
| *5 | REAR ENGINE MOUNTING BRACKET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

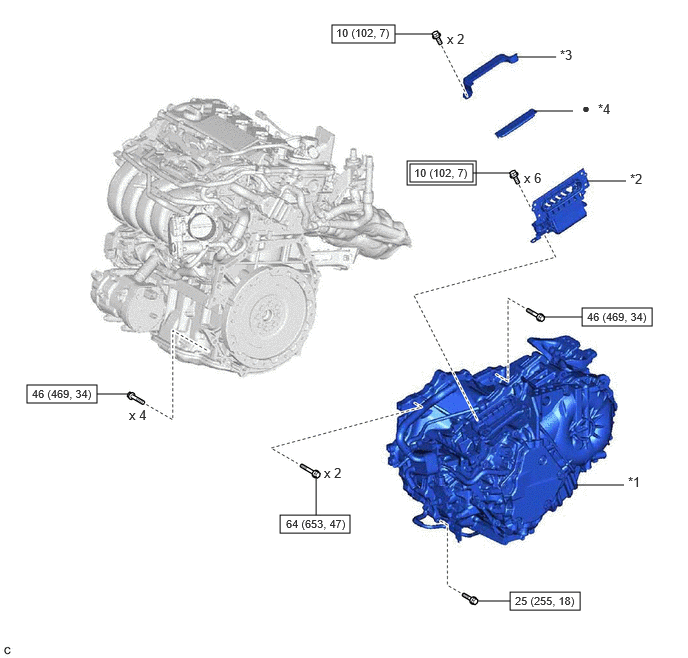

Fig 4: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications [11/2023 - ] (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *2 | MOTOR CABLE |
| *3 | CONNECTOR COVER | *4 | TERMINAL CAP |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |

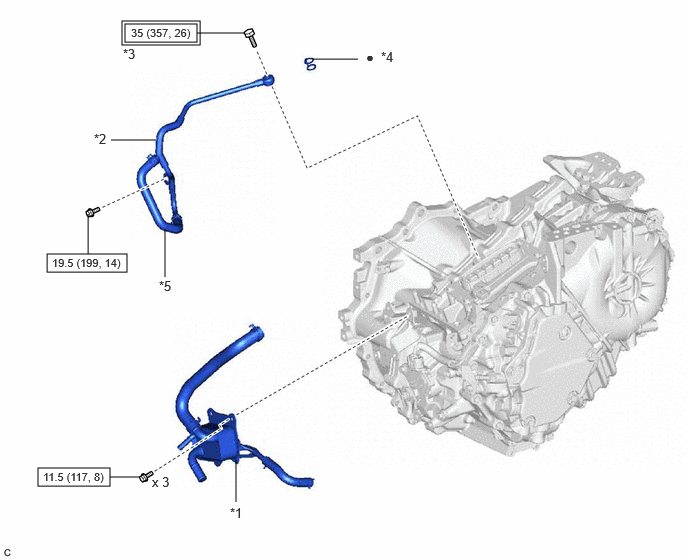

Fig 5: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications [11/2023 - ] (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | MOTOR COOLING COOLER | *2 | MOTOR COOLING PIPE ASSEMBLY |
| *3 | OIL COOLER UNION BOLT | *4 | GASKET |
| *5 | OUTLET MOTOR HOSE | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |

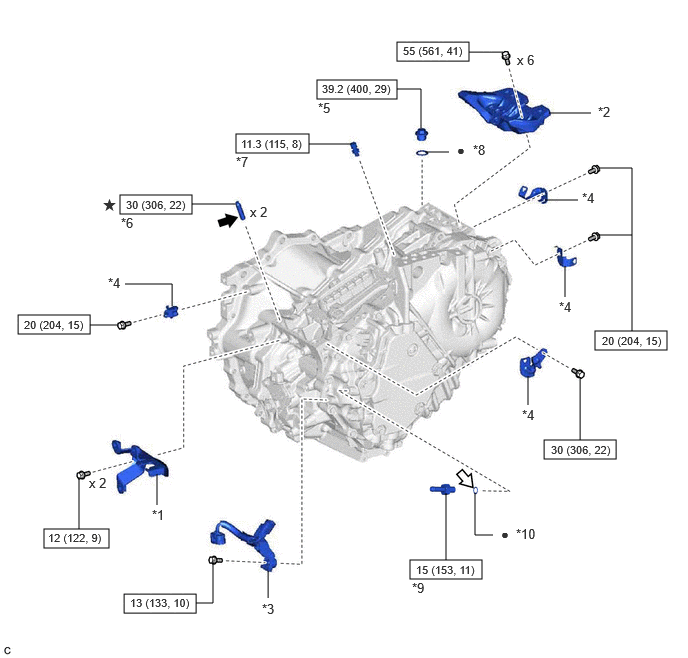

Fig 6: Hybrid Vehicle Transaxle Replacement Components With Torque Specifications [11/2023 - ] (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 TRANSMISSION CONTROL CABLE BRACKET | *2 | NO. 3 INVERTER BRACKET |
| *3 | TRANSMISSION WIRE | *4 | WIRE HARNESS CLAMP BRACKET |
| *5 | TRANSAXLE HOUSING PLUG | *6 | STUD BOLT |
| *7 | TRANSAXLE BREATHER PLUG | *8 | GASKET |
| *9 | TUBE CONNECTOR | *10 | O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | |
Toyota Genuine ATF WS |
| * | Precoated part | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OUTLET MOTOR HOSE | *2 | MOTOR COOLING PIPE ASSEMBLY |
