Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

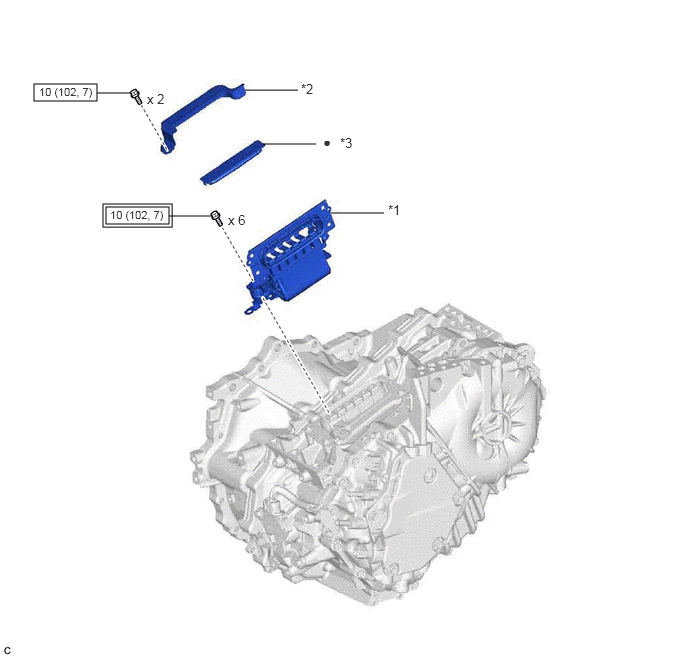

Fig 1: Motor Cable Replacement Components With Torque Specifications
GTY863534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MOTOR CABLE *2 CONNECTOR COVER
*3 TERMINAL CAP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
Non-reusable part - -
