Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

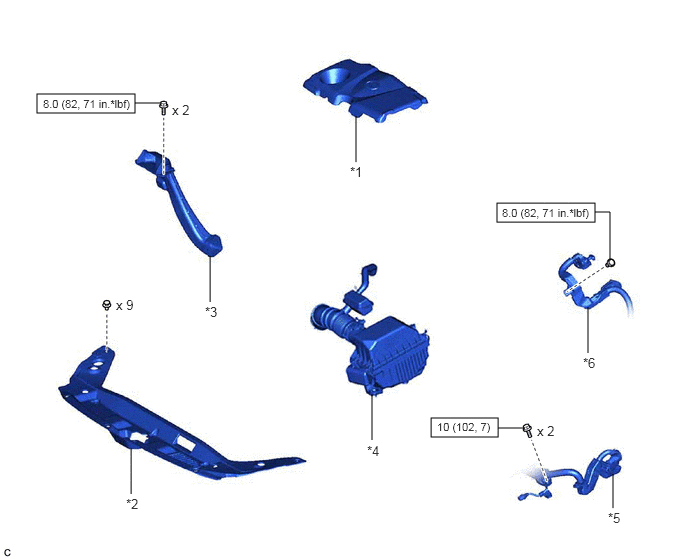

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
| *5 | ENGINE WIRE | *6 | ENGINE ROOM MAIN WIRE |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

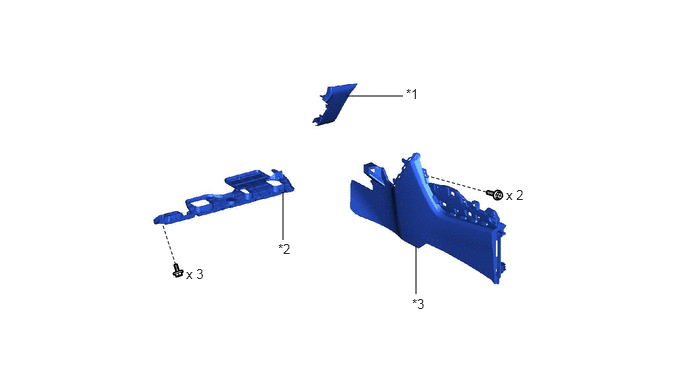

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 SWITCH HOLE BASE | *2 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *3 | FRONT CONSOLE BOX INSERT | - | - |

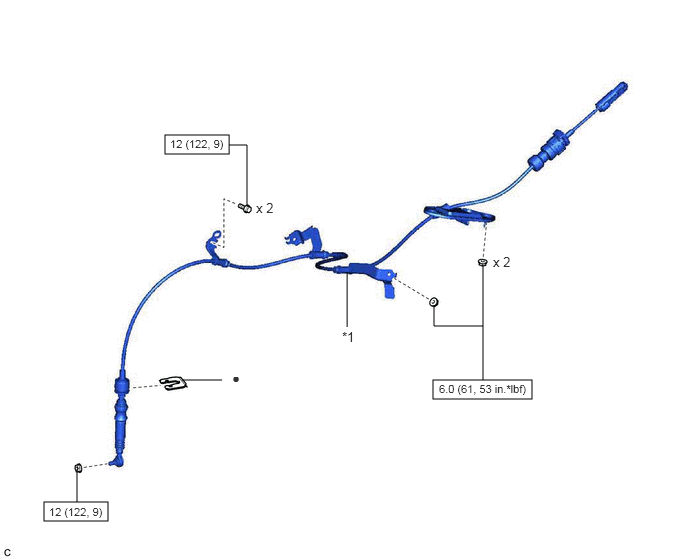

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
