Components [12/2019 - 11/2023]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Oil Pump Replacement Components With Torque Specifications [12/2019 - 11/2023] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

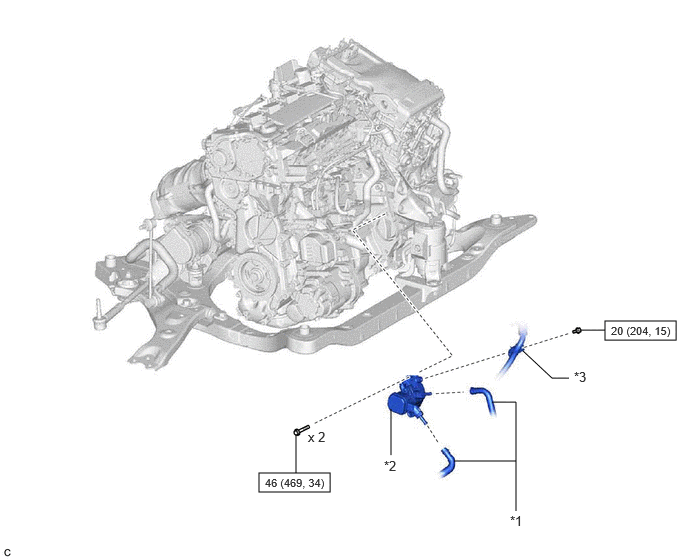

Fig 2: Oil Pump Replacement Components With Torque Specifications [12/2019 - 11/2023] (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY	*2	OIL PUMP WITH MOTOR ASSEMBLY
*3	WIRE HARNESS CLAMP BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
