Removal [12/2019 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 11/2023]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 11/2023]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 11/2023]

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - 11/2023]

  5. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [12/2019 - 10/2021] , or refer to REMOVAL [10/2021 - ]

  6. DISCONNECT NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY

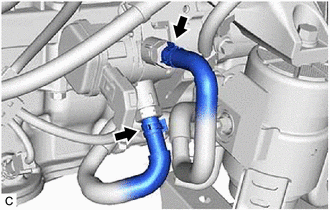

    1. Slide the 2 clips and disconnect the No. 2 transmission oil cooler hose assembly from the oil pump with motor assembly.
      GTY917405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE OIL PUMP WITH MOTOR ASSEMBLY

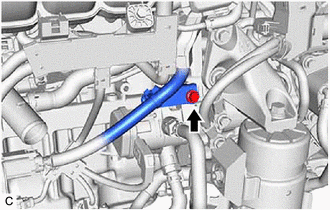

    1. Remove the bolt and wire harness clamp bracket from the oil pump with motor assembly.
      GTY917436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

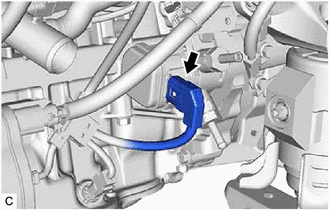

    2. Disconnect the oil pump with motor assembly connector.
      GTY943652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

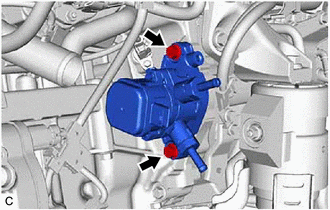

    3. Remove the 2 bolts and oil pump with motor assembly from the engine assembly.
      GTY917403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
