Components [12/2019 - 11/2023]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Oil Cooler (For Water Cooled Type) Replacement Components With Torque Specifications [12/2019 - 11/2023] (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

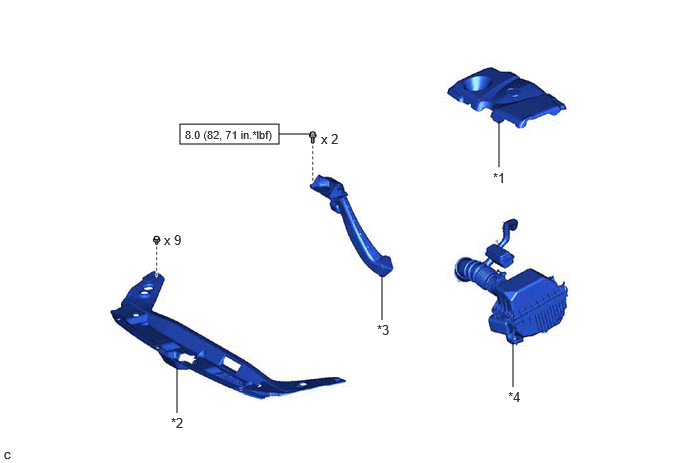

Fig 2: Oil Cooler (For Water Cooled Type) Replacement Components With Torque Specifications [12/2019 - 11/2023] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

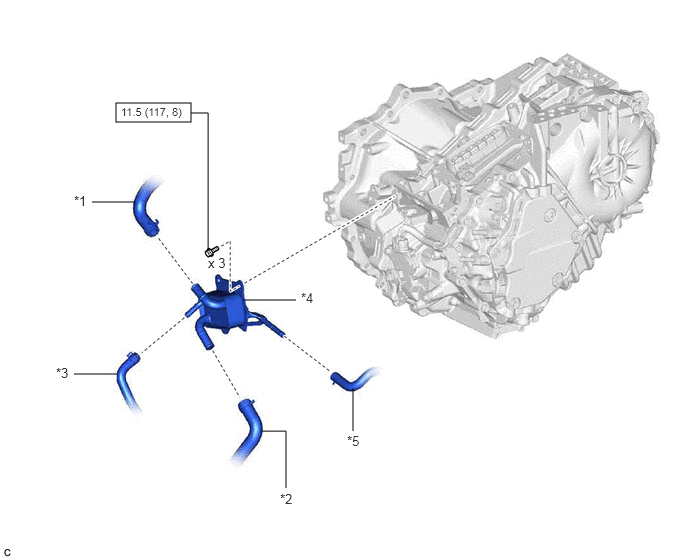

Fig 3: Oil Cooler (For Water Cooled Type) Replacement Components With Torque Specifications [12/2019 - 11/2023] (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 INVERTER COOLING HOSE | *2 | NO. 5 INVERTER COOLING HOSE |
| *3 | NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY | *4 | MOTOR COOLING COOLER |
| *5 | NO. 1 MOTOR COOLING HOSE | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
