Components [12/2019 - 11/2023]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Oil Cooler (For Air Cooled Type) Replacement Components With Torque Specifications [12/2019 - 11/2023] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

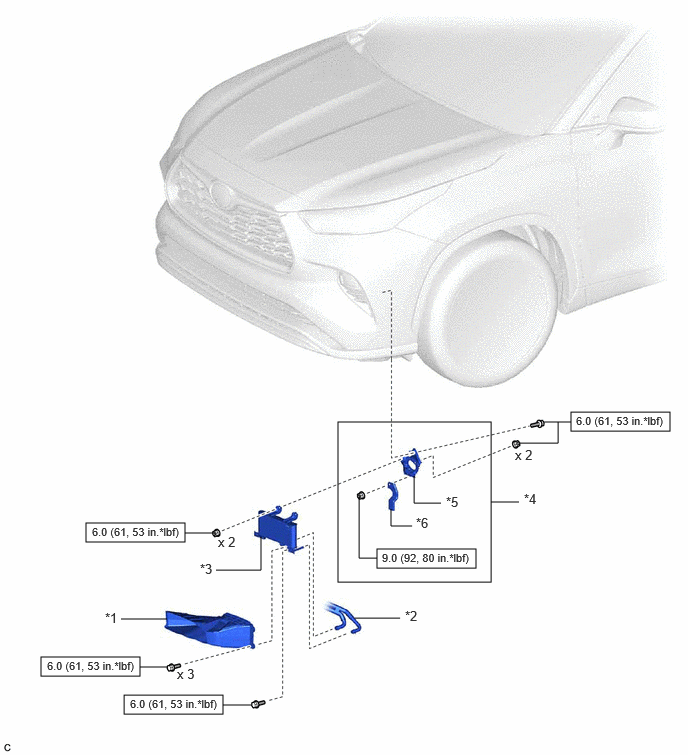

Fig 2: Oil Cooler (For Air Cooled Type) Replacement Components With Torque Specifications [12/2019 - 11/2023] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION OIL COOLER AIR DUCT | *2 | NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY |
| *3 | OIL COOLER ASSEMBLY | *4 | TRANSMISSION OIL COOLER BRACKET |
| *5 | NO. 2 TRANSMISSION OIL COOLER BRACKET | *6 | NO. 3 TRANSMISSION OIL COOLER BRACKET |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
