Removal [12/2019 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 11/2023]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 11/2023]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 11/2023]

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - 11/2023]

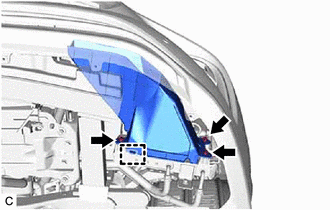

  5. REMOVE TRANSMISSION OIL COOLER AIR DUCT
    1. Remove the 3 bolts.
      GTY922171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the transmission oil cooler air duct from the oil cooler assembly.

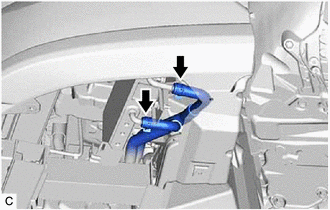

  6. DISCONNECT NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY
    GTY922170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Slide the 2 clips and disconnect the No. 1 transmission oil cooler hose assembly from the oil cooler assembly.

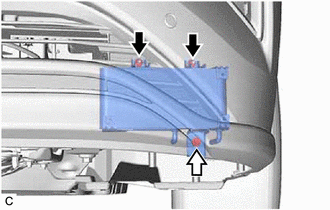

  7. REMOVE OIL COOLER ASSEMBLY
    1. Remove the 2 nuts, bolt and oil cooler assembly from the transmission oil cooler bracket.
      GTY941940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt

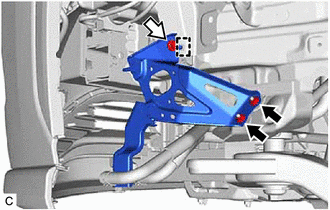

  8. REMOVE TRANSMISSION OIL COOLER BRACKET

    HINT:

    Perform this procedure only when replacement of the transmission oil cooler bracket, No. 2 transmission oil cooler bracket or No. 3 transmission oil cooler bracket is necessary.

    1. Remove the 2 nuts and bolt and disengage the guide to remove the transmission oil cooler bracket from the vehicle body.
      GTY903521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt
    2. Remove the nut and No. 3 transmission oil cooler bracket from the No. 2 transmission oil cooler bracket.
      GTY922126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
