System Diagram [12/2019 - 11/2023]

WARNING: This page is about a different variant/trim than selected.

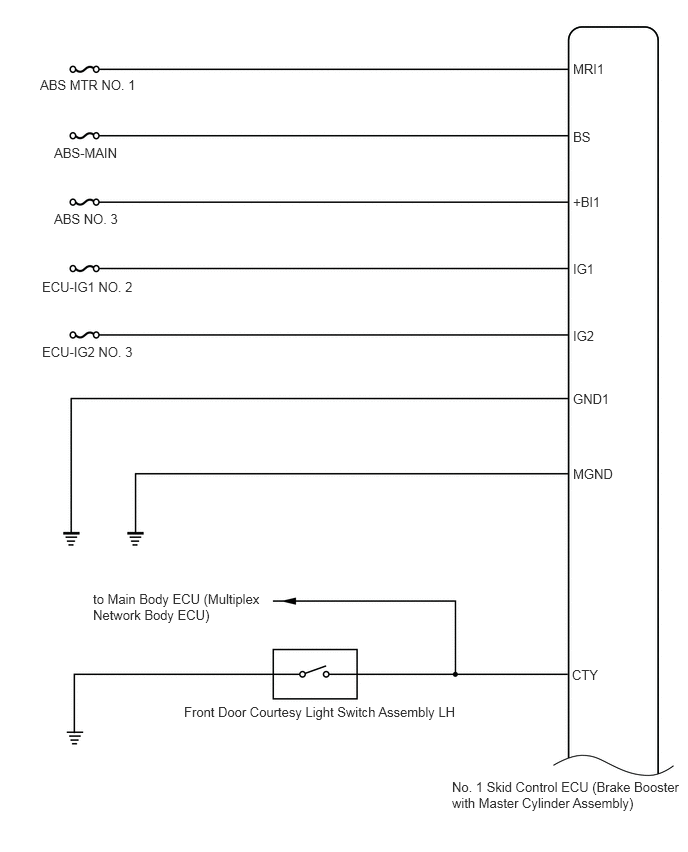

GTY920877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY926410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

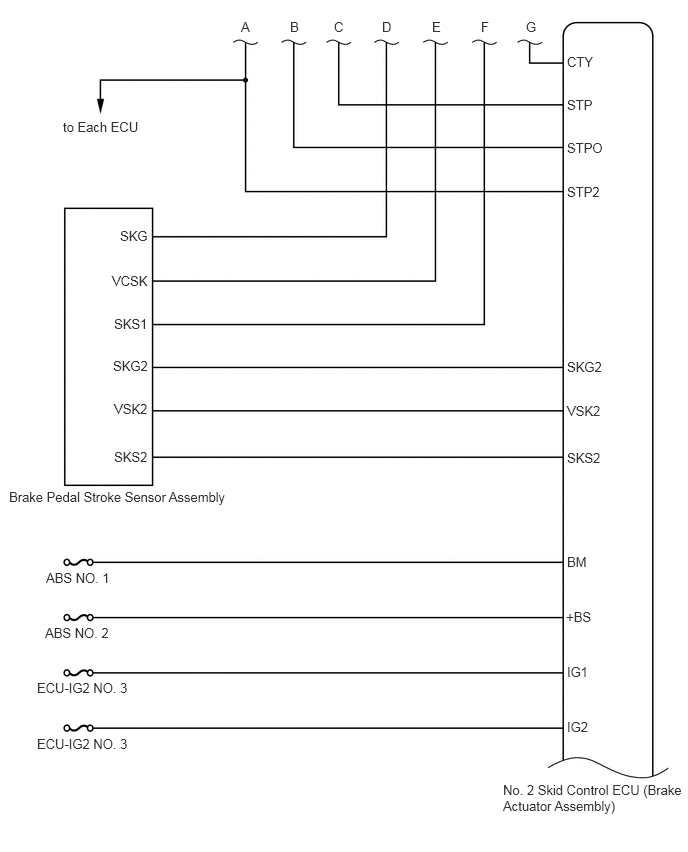

GTY849863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY870314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY874541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

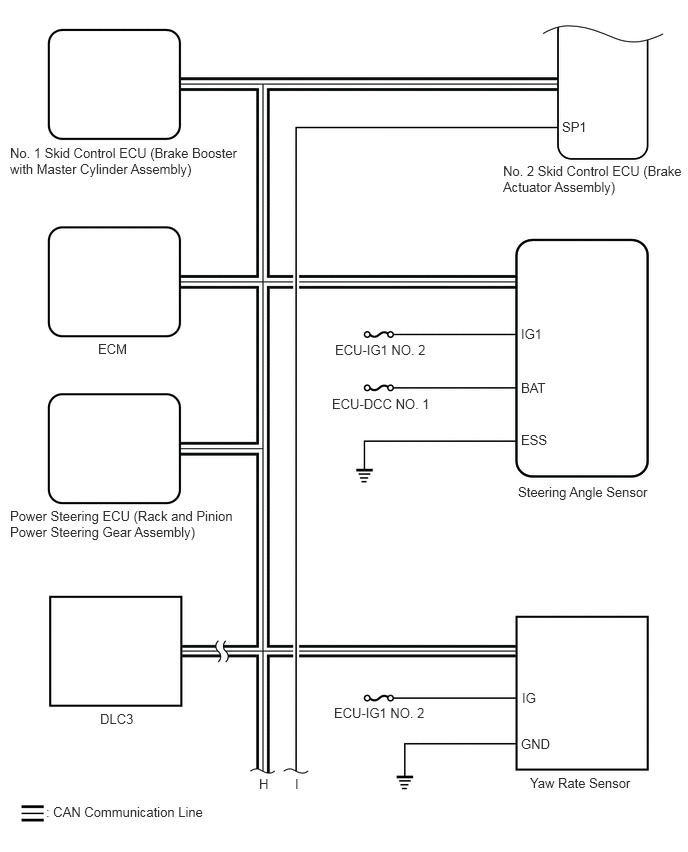

GTY879249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

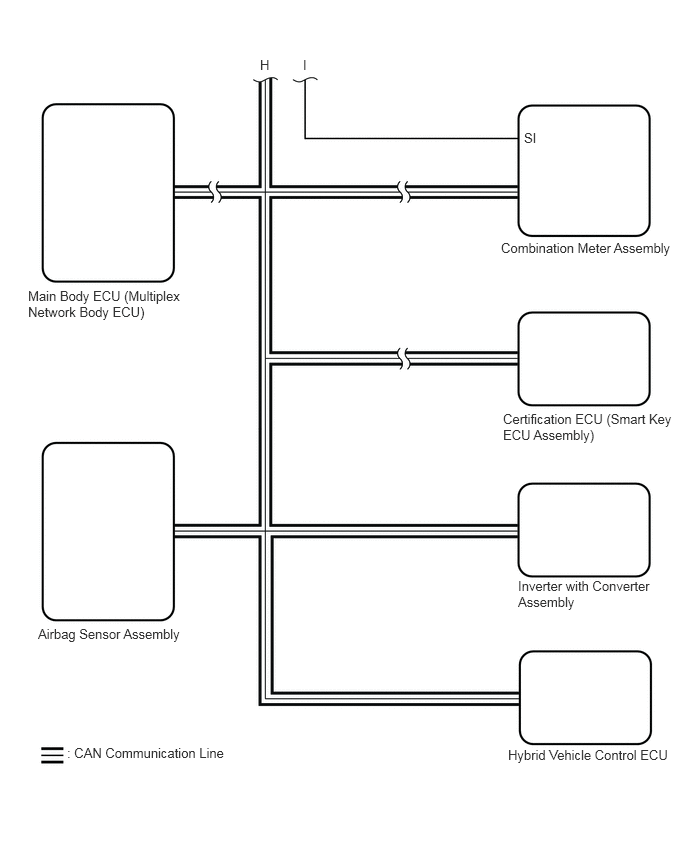

GTY884403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
