System Diagram [11/2023 - ]

WARNING: This page is about a different variant/trim than selected.

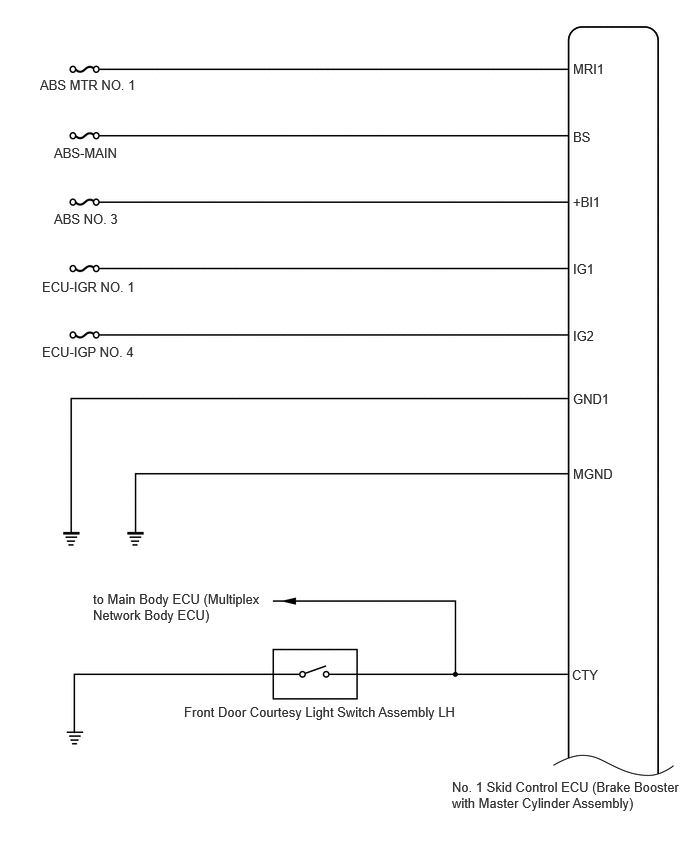

GTY1178220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

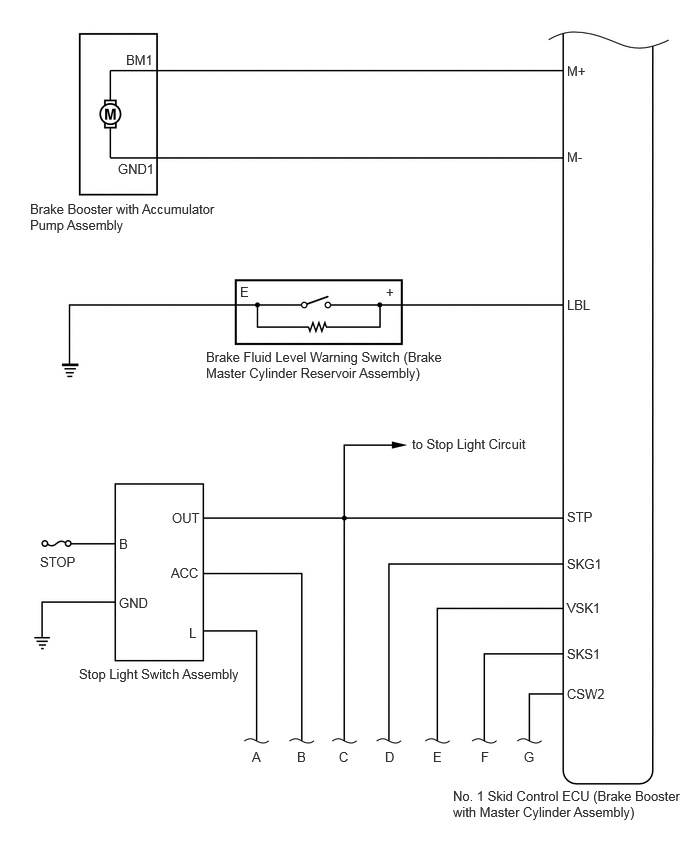

GTY926410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

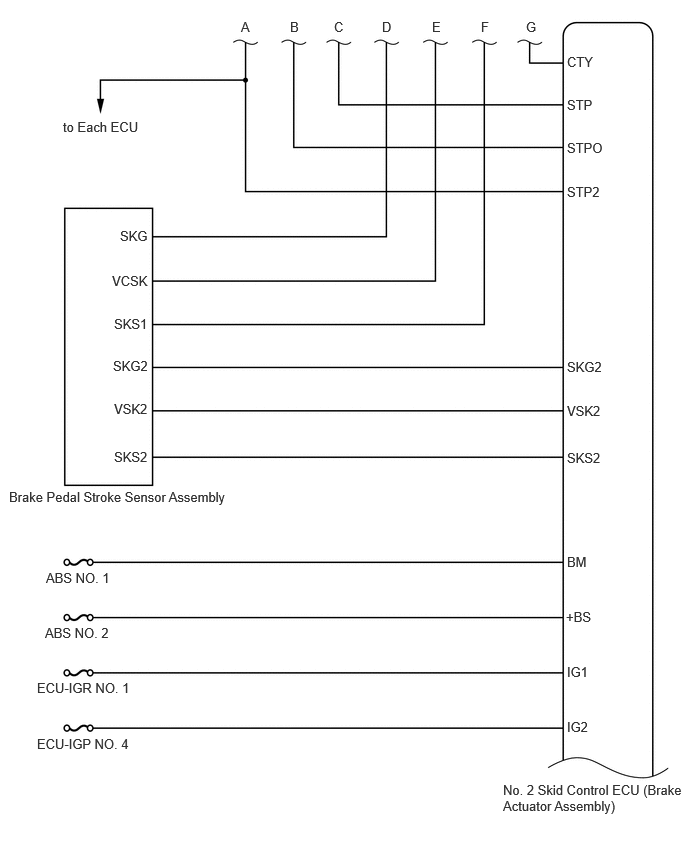

GTY1177827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

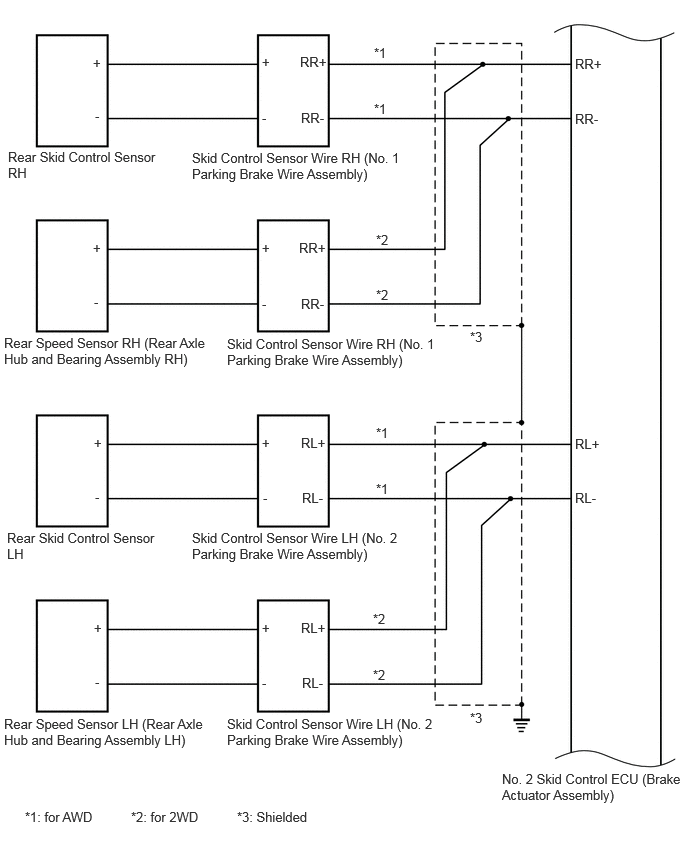

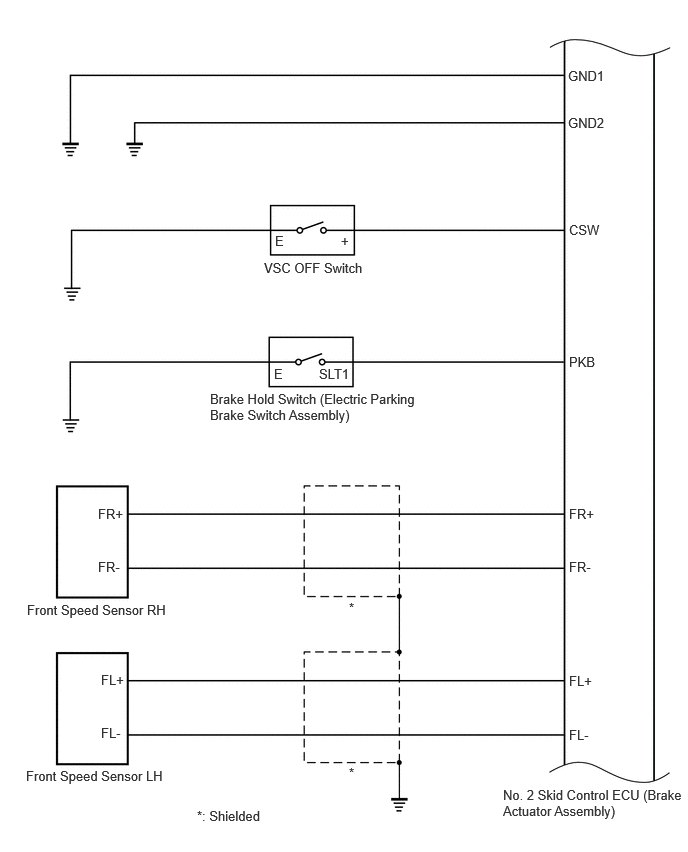

GTY870314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY874541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

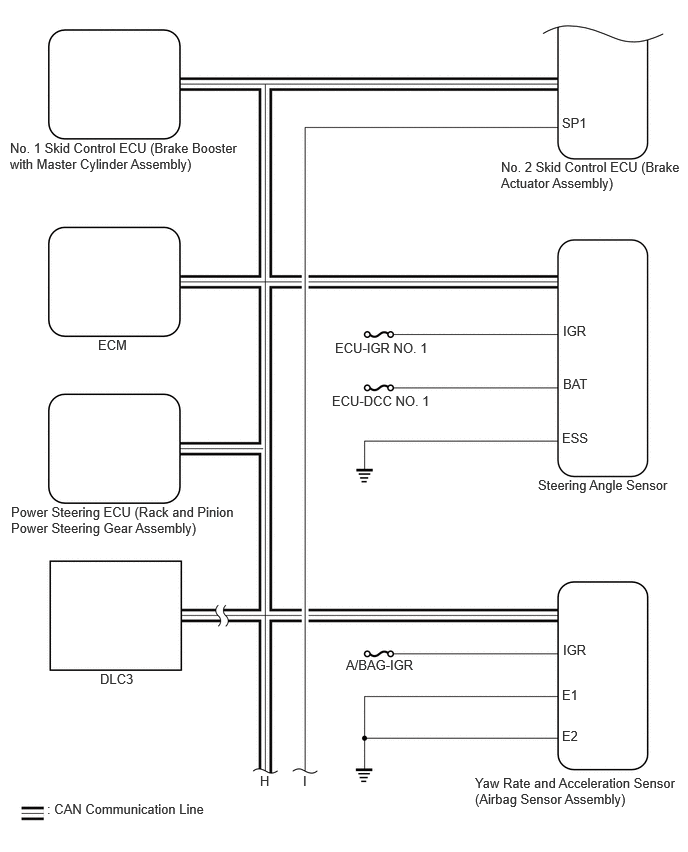

GTY1178123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

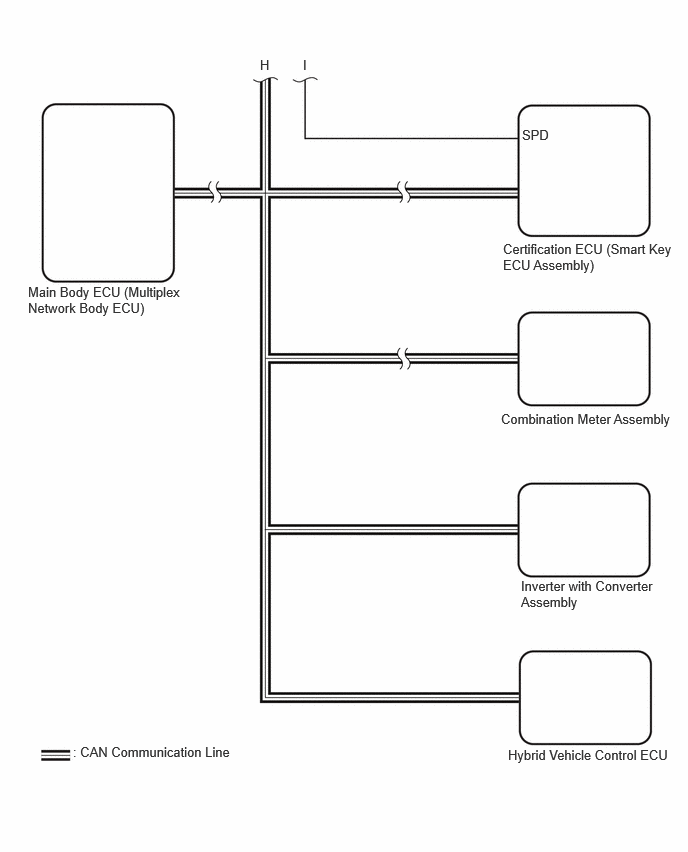

GTY1178823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
