Typical Malfunction Thresholds

WARNING: This page is about a different variant/trim than selected.
Following condition is met Higher than 3 times

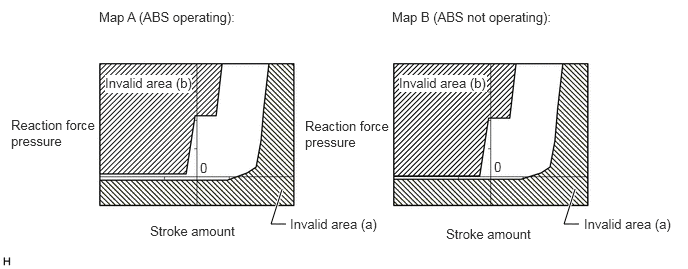

Ratio of the output value of the brake pedal stroke sensor assembly and reaction force pressure sensor Within the invalid area (a) or invalid area (b) of the following Map A or Map B
GTY697276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
