ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
Brake Hold Standby Indicator Light Circuit [10/2022 - ]
>>

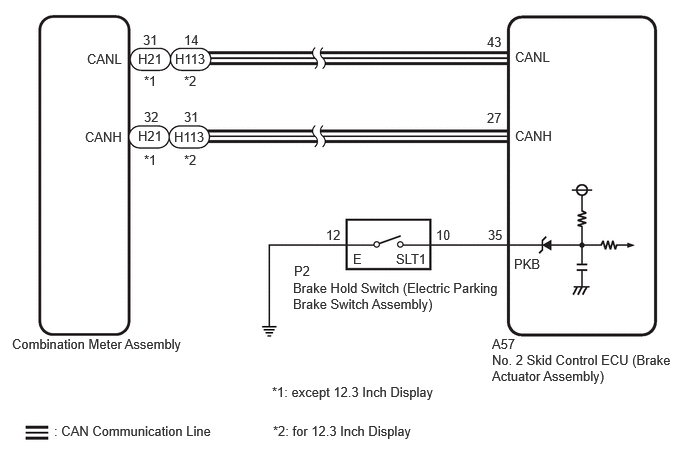

Wiring Diagram
Brake Hold Standby Indicator Light Circuit [10/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
