Steering Angle Sensor Wrong Installation (X0455) [11/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK DTC (HEALTH CHECK)
    1. Perform the Health Check using the GTS.

      Result

      Result Proceed to
      DTCs are not output. A
      DTCs are output. B

    Result:

    B

    GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [11/2023 - ]

    Result:

    A

    See step  2

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  3

  3. READ VALUE USING GTS (STEERING ANGLE SIGNAL INFORMATION)
    1. Check Data List item "steering angle signal information".

      Chassis > Steering Angle Sensor > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Steering Angle Signal Information Steering angle value (Rotation to the left side is positive) Min.: -3072.0°
      Max.: 3070.5°      		 Turning left: 0.0 to 3070.5°
      Turning right: -3072.0 to 0.0°      		 During steering operation: Changes in proportion with steering wheel rotation

      Chassis > Steering Angle Sensor > Data List

      Tester Display
      Steering Angle Signal Information
    2. Save the steering angle signal information to the GTS memory.
      NOTE:
      • If the value is +/- 360° (+/-15°), the steering angle sensor was incorrectly installed by 1 rotation.
      • If the value is +/- 720° (+/-15°), the steering angle sensor was incorrectly installed by 2 rotations.
      • In situations other than the above, the steering angle sensor may have been incorrectly installed by 3 or more rotations.

        In this case, it is possible that the proper installation or removal procedures were not followed, and the steering angle sensor may have been damaged.

      Result

      Result Proceed to
      0° (+/-15°) A
      +/-360° (+/-15°) or +/-720° (+/-15°) B
      Other than above. C

    Result:

    B

    See step  7

    Result:

    C

    See step  13

    Result:

    A

    See step  4

  4. CLEAR VEHICLE CONTROL HISTORY
    1. Using the GTS, clear the Vehicle Control History.

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  5

  5. PERFORM ZERO POINT CALIBRATION OF STEERING ANGLE SENSOR
    1. Disconnect cable from negative (-) auxiliary battery terminal.
    2. Connect cable to negative (-) auxiliary battery terminal.
    3. Drive the vehicle straight ahead at 35 km/h (22 mph) or more for at least 5 seconds.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  6

  6. CHECK VEHICLE CONTROL HISTORY
    1. Based on the Freeze Frame Data and interview with the customer, attempt to reproduce the conditions when the malfunction occurred.
    2. Using the GTS, check for Vehicle Control History.

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Result Proceed to
      X0455 is not output. A
      X0455 is output. B

    Result:

    A

    END

    Result:

    B

    REPLACE STEERING ANGLE SENSOR

    Refer to REMOVAL [11/2023 - ]

  7. ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
    1. Remove the spiral cable with sensor sub-assembly.

      Refer to REMOVAL [11/2023 - ]

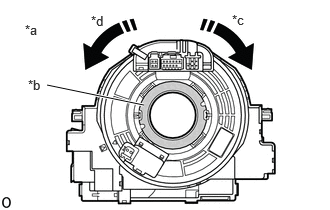

      GTY1156102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a The shape may vary depending on the vehicle model
      *b Interlock
      *c Clockwise
      *d Counterclockwise
      NOTE:
      • Do not disconnect the steering angle sensor from the spiral cable.
      • Make sure that the cable is disconnected from the negative (-) auxiliary battery terminal.
    2. Based on the steering angle signal information that was saved to the GTS memory earlier, rotate the spiral cable with sensor sub-assembly.
      NOTE:
      • Rotate the steering angle sensor without disconnecting it from the spiral cable.
      • Make sure to follow the adjustment method shown in the table.
      • Failure to observe the following precautions may result in damage to the spiral cable with sensor sub-assembly.
        • When rotating the spiral cable with sensor sub-assembly, make sure to push on the interlock to release the interlock.
        • Do not turn the spiral cable with sensor sub-assembly using the airbag wire harness.
        • Do not forcibly rotate the part.
        • Make sure to perform the correct number of rotations in the correct direction.
      Steering Angle Signal Information Correction Method
      360° (+/-15°) Rotate clockwise (to the right), 1 rotation.
      -360° (+/-15°) Rotate counterclockwise (to the left), 1 rotation.
      720° (+/-15°) Rotate clockwise (to the right), 2 rotations.
      -720° (+/-15°) Rotate counterclockwise (to the left), 2 rotations.
    3. Install the spiral cable with sensor sub-assembly.

      Refer to INSTALLATION [11/2023 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  8

  8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  9

  9. READ VALUE USING GTS (STEERING ANGLE SIGNAL INFORMATION)
    1. Check Data List item "steering angle signal information".

      Chassis > Steering Angle Sensor > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Steering Angle Signal Information Steering angle value (Rotation to the left side is positive) Min.: -3072.0°
      Max.: 3070.5°      		 Turning left: 0.0 to 3070.5°
      Turning right: -3072.0 to 0.0°      		 During steering operation: Changes in proportion with steering wheel rotation

      Chassis > Steering Angle Sensor > Data List

      Tester Display
      Steering Angle Signal Information

      Result

      Result Proceed to
      0° (+/-15°) A
      Other than above. B

    Result:

    B

    REPLACE STEERING ANGLE SENSOR

    Refer to REMOVAL [11/2023 - ]

    Result:

    A

    See step  10

  10. CLEAR VEHICLE CONTROL HISTORY
    1. Using the GTS, clear the Vehicle Control History.

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  11

  11. PERFORM ZERO POINT CALIBRATION OF STEERING ANGLE SENSOR
    1. Drive the vehicle straight ahead at 35 km/h (22 mph) or more for at least 5 seconds.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  12

  12. CHECK VEHICLE CONTROL HISTORY
    1. Based on the Freeze Frame Data and interview with the customer, attempt to reproduce the conditions when the malfunction occurred.
    2. Using the GTS, check for Vehicle Control History.

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Result Proceed to
      X0455 is not output. A
      X0455 is output. B

    Result:

    A

    END

    Result:

    B

    REPLACE STEERING ANGLE SENSOR

    Refer to REMOVAL [11/2023 - ]

  13. CHECK STEERING WHEEL ASSEMBLY CENTER POSITION
    1. Perform steering wheel assembly center position adjustment.

      Refer to ADJUSTMENT [12/2019 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  14

  14. ADJUST WHEEL ALIGNMENT
    1. Adjust the alignment (toe) of the wheels.

      for Front: Refer to ADJUSTMENT [11/2023 - 11/2024] , or refer to ADJUSTMENT [11/2024 - ]

      for Rear: Refer to ADJUSTMENT [11/2023 - 11/2024] , or refer to ADJUSTMENT [11/2024 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  15

  15. CLEAR VEHICLE CONTROL HISTORY
    1. Using the GTS, clear the Vehicle Control History.

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  16

  16. PERFORM ZERO POINT CALIBRATION OF STEERING ANGLE SENSOR
    1. Disconnect cable from negative (-) auxiliary battery terminal.

      HINT:

      If the cable is not disconnected from the negative (-) auxiliary battery terminal, it may not be possible to obtain an accurate steering angle sensor zero point.

    2. Connect cable to negative (-) auxiliary battery terminal.
    3. Drive the vehicle straight ahead at 35 km/h (22 mph) or more for at least 5 seconds.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  17

  17. CHECK VEHICLE CONTROL HISTORY
    1. Based on the Freeze Frame Data and interview with the customer, attempt to reproduce the conditions when the malfunction occurred.
    2. Using the GTS, check for Vehicle Control History.

      Chassis > Brake/EPB > Utility

      Tester Display
      Vehicle Control History (RoB)

      Result

      Result Proceed to
      X0455 is not output A
      X0455 is output B

    Result:

    A

    END

    Result:

    B

    REPLACE STEERING ANGLE SENSOR

    Refer to REMOVAL [11/2023 - ]
