Installation [12/2019 - ]: Procedure

  1. INSTALL ROOM LIGHT BULB
    1. Install the room light bulb to the room light switch base.
  2. INSTALL NO. 1 ROOM LIGHT ASSEMBLY

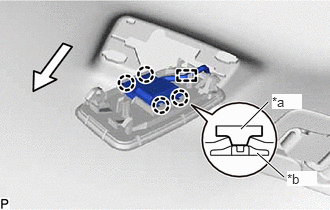

    1. Align the switch parts as shown in the illustration and engage the 4 claws to install the room light housing to the room light switch base.
      GTY900511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Switch Part of Room Light Switch Base
      *b Switch Part of Room Light Housing
      Front
    2. Engage the clamp.

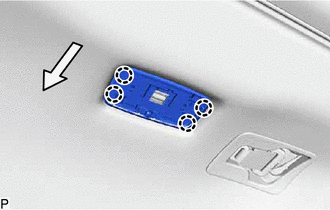

    3. Engage the 4 claws to install the room light housing.
      GTY938600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front

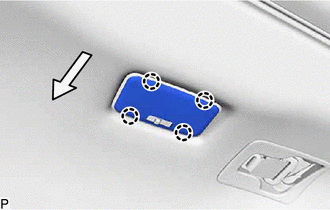

    4. Engage the 4 claws to install the room light lens.
      GTY911275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
