Installation [12/2019 - ]: Procedure

  1. INSTALL MAP LIGHT SWITCH
    1. Engage the 2 guides to install the map light switch as shown in the illustration.
      GTY869160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  2. INSTALL SPOT LIGHT BULB
    1. Install the spot light bulb to the map light sub-assembly.

      HINT:

      Use the same procedure for the RH side and LH side.

  3. INSTALL SPOT LIGHT ASSEMBLY
    1. Engage the 8 claws to install the spot light housing to the map light sub-assembly.

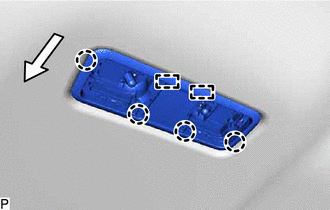

    2. Engage the 4 claws and 2 guides to install the spot light housing.
      GTY874531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front

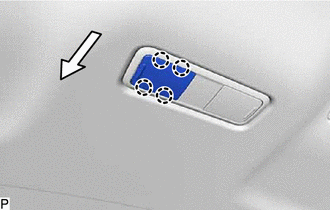

    3. Engage the 4 claws to install the spot light lens.
      GTY926836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front

      HINT:

      Use the same procedure for the RH side and LH side.
