Installation [12/2019 - ]: Procedure

HINT:

The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated with foreign matter.

1. Remove the rain sensor tape.
2. Clean the rain sensor sensing portion with a piece of cloth.
3. Peel off the smaller release sheet, and then attach the rain sensor tape to the rain sensor sensing portion as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use your fingers to push out any air bubbles from under the tape.

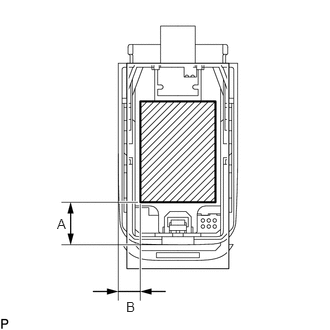

   STANDARD CLEARANCE



   Area	Measurement
   A	14.4 mm (0.567 in.)
   B	7.25 mm (0.285 in.)

1. Clean the windshield glass with a piece of cloth.
   NOTE:

   • Make sure that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue.
   • If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.
2. When installing a new rain sensor or when the rain sensor tape has been replaced:
   1. Peel off the release sheet.

      HINT:

      Do not touch the silicone surface.

3. Gradually attach the rain sensor to the windshield glass surface in the direction indicated by the arrow shown in the illustration to prevent air bubbles from forming between them.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Stopper
   	Lock
   	Install in this Direction

   HINT:

   Do not touch the silicone or glass surfaces.

4. Push in the stopper to install the rain sensor as shown in the illustration.
5. Connect the connector.

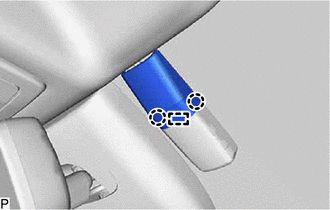

1. Engage the guide and 2 claws to install the rain sensor cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
