Installation [11/2023 - ]: Procedure

  1. INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR
    1. Connect the connector.

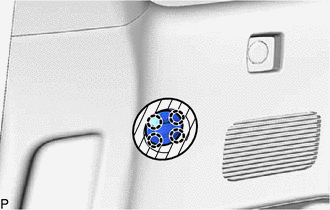

    2. Engage the 4 claws to install the cooler (No. 2 room temp. sensor) thermistor.
      GTY1179083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
      NOTE:

      Do not reuse the cooler (No. 2 room temp. sensor) thermistor removed from the deck trim side panel assembly RH. Reusing the removed cooler (No. 2 room temp. sensor) thermistor may cause it to loosen or come off.

    3. Remove the protective tape.
