Reassembly [12/2019 - ]: Procedure

  1. INSTALL NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY

    HINT:

    When installing a No. 2 seat cushion cover sub-assembly, refer to Precaution in order to prevent wrinkles from forming.

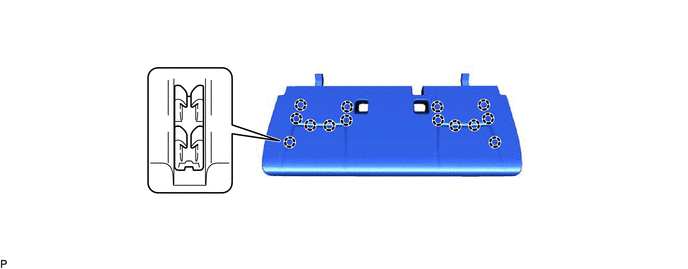

    1. Engage the 14 claws.
      GTY898076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the No. 2 seat cushion cover sub-assembly.

    2. Engage the 19 hooks to install the No. 2 seat cushion cover sub-assembly.
      GTY898080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the No. 2 seat cushion cover sub-assembly.

  2. INSTALL RECLINING CONTROL LINK SUB-ASSEMBLY LH (for LH Side)
    1. Install the reclining control link sub-assembly LH with the 2 nuts.
      GTY908465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  3. INSTALL REAR SEAT HEADREST GUIDE (for LH Side)
    1. Engage the 2 claws and guide to install the rear seat headrest guide.
      GTY897938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 SEAT HEADREST ASSEMBLY (for LH Side)
    1. Install the No. 2 seat headrest assembly with the 3 nuts.
      GTY939343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 14 N.m (143 kgf/cm, 10 ft.lbf)

  5. INSTALL REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY LH (for LH Side)
    1. Route the rear No. 2 seat cushion lock cable assembly LH as shown in the illustration and engage the clamp.
      GTY897946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clamps to install the rear No. 2 seat cushion lock cable assembly LH.
      GTY897949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY (for LH Side)
    1. Route the rear No. 2 seat cushion lock cable assembly as shown in the illustration.
      GTY939344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clamps to install the rear No. 2 seat cushion lock cable assembly.
      GTY897947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR NO. 2 SEAT RECLINING COVER LH (for LH Side)

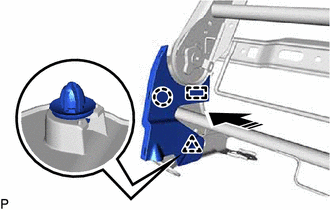

    1. Engage the claw, clip and guide as shown in the illustration to install the rear No. 2 seat reclining cover LH.
      GTY873670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  8. INSTALL REAR NO. 2 SEAT RECLINING COVER LH (for LH Side)

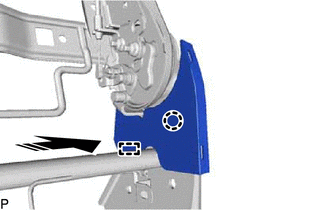

    1. Engage the claw and guide as shown in the illustration to install the rear No. 2 seat reclining cover LH.
      GTY877123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  9. INSTALL REAR NO. 2 SEAT NO. 2 RECLINING COVER LH (for LH Side)

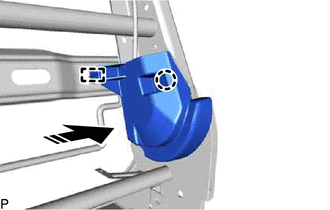

    1. Engage the claw and guide as shown in the illustration to install the rear No. 2 seat No. 2 reclining cover LH.
      GTY866836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  10. INSTALL NO. 2 RECLINING REMOTE CONTROL BEZEL LH (for LH Side)

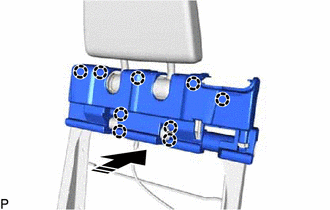

    1. Engage the 9 claws as shown in the illustration to install the No. 2 reclining remote control bezel LH.
      GTY922051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

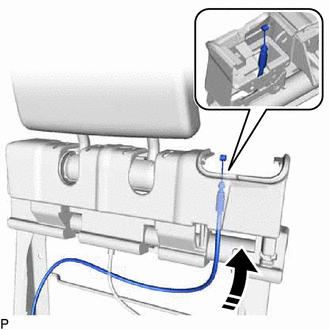

    2. Insert the rear No. 2 seat cushion lock cable assembly LH as shown in the illustration.
      GTY944512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert in this Direction
  11. INSTALL REAR SIDE SEAT BAND SUB-ASSEMBLY (for LH Side)
    1. Install the rear side seat band sub-assembly.
      GTY897932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL NO. 2 SEATBACK COVER SUB-ASSEMBLY LH (for LH Side)

    HINT:

    When installing a No. 2 seatback cover sub-assembly LH, refer to precaution in order to prevent wrinkles from forming.

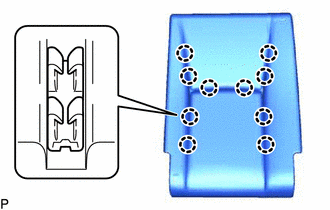

    1. Engage the 10 claws to install the No. 2 seatback cover sub-assembly LH to the No. 2 seatback pad LH.
      GTY897930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the No. 2 seatback cover sub-assembly LH.

  13. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD LH (for LH Side)
    1. Engage the 8 clips.
      GTY897934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 6 hooks.
      GTY897935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 4 fasteners and 4 hooks to install the separate type rear seatback cover with pad LH.
      GTY888704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  14. INSTALL NO. 2 SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)
    1. Engage the guide as shown in the illustration.
      GTY867273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

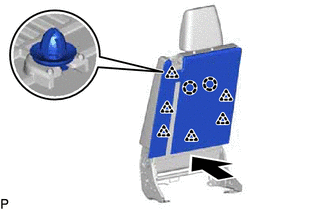

    2. Engage the 6 clips and 2 claws as shown in the illustration to install the No. 2 seatback board sub-assembly LH.
      GTY897999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY (for LH Side)
    1. Connect the rear No. 2 seat cushion lock cable assembly LH.
      GTY898006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

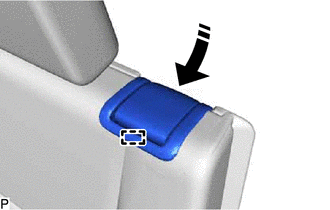

    2. Engage the guide as shown in the illustration.
      GTY914751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the rear seat lock control lever sub-assembly with the 2 screws.
      GTY898005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR SEATBACK LOCK STRIKER COVER LH (for LH Side)

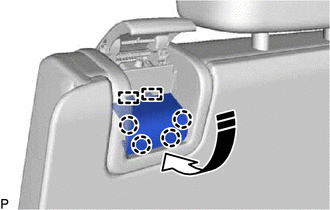

    1. Engage the 2 guides and 4 claws as shown in the illustration to install the rear seatback lock striker cover LH
      GTY913768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  17. INSTALL NO. 2 SEAT NO. 2 HINGE COVER (for LH Side)

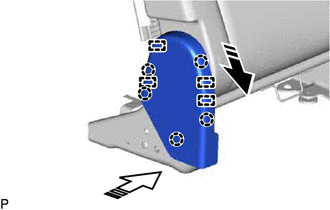

    1. Engage the 5 claws and 4 guides as shown in the illustration to install the No. 2 seat No. 2 hinge cover.
      GTY873636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  18. INSTALL NO. 2 SEAT HINGE COVER (for LH Side)

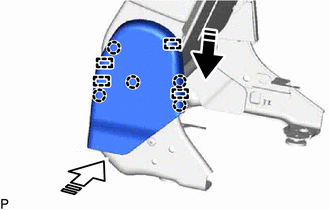

    1. Engage the 5 claws and 4 guides as shown in the illustration to install the No. 2 seat hinge cover.
      GTY863402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  19. INSTALL SEAT ADJUSTER COVER CAP (for LH Side)
    1. Install the 2 seat adjuster cover caps.
      GTY897971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL RECLINING CONTROL LINK SUB-ASSEMBLY RH (for RH Side)
    1. Install the reclining control link sub-assembly RH with the 2 nuts.
      GTY941675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  21. INSTALL REAR SEAT HEADREST GUIDE (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  22. INSTALL NO. 2 SEAT HEADREST ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  23. INSTALL REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY RH (for RH Side)
    1. Route the rear No. 2 seat cushion lock cable assembly RH as shown in the illustration and engage the clamp.
      GTY898078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clamps to install the rear No. 2 seat cushion lock cable assembly RH.
      GTY939373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY (for RH Side)

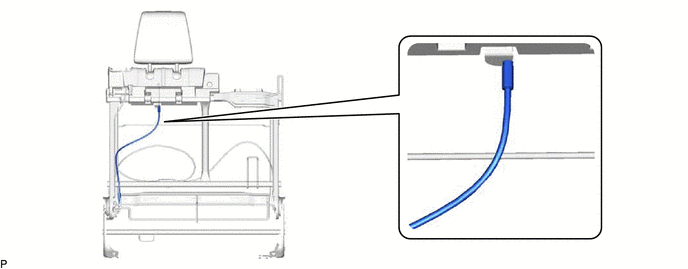

    1. Route the rear No. 2 seat cushion lock cable assembly as shown in the illustration.
      GTY897904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clamps to install the rear No. 2 seat cushion lock cable assembly.
      GTY897906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL REAR NO. 2 SEAT RECLINING COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  26. INSTALL REAR NO. 2 SEAT RECLINING COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  27. INSTALL REAR NO. 2 SEAT NO. 2 RECLINING COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  28. INSTALL NO. 2 RECLINING REMOTE CONTROL BEZEL RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  29. INSTALL REAR SEATBACK PROTECTOR (for RH Side)
    1. Engage the guide.
      GTY897900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear seatback protector with the screw.
  30. INSTALL REAR SIDE SEAT BAND SUB-ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  31. INSTALL REAR SEAT BELT HOOK (for RH Side)

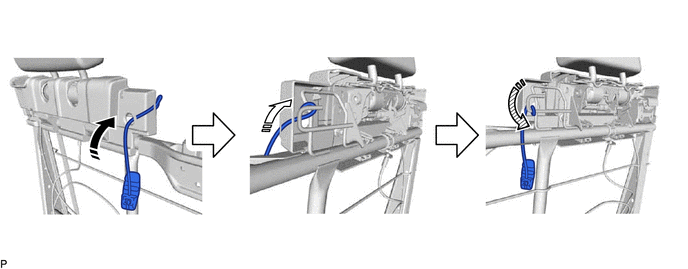

    1. Install the rear seat belt hook as shown in the illustration.
      GTY853749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1) Install in this Direction (2)
      Install in this Direction (3) - -
  32. INSTALL NO. 2 SEATBACK COVER SUB-ASSEMBLY RH (for RH Side)

    HINT:

    When installing a No. 2 seatback cover sub-assembly RH, refer to precaution in order to prevent wrinkles from forming.

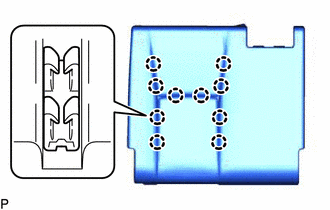

    1. Engage the 10 claws to install the No. 2 seatback cover sub-assembly RH to the No. 2 seatback pad RH.
      GTY939337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the No. 2 seatback cover sub-assembly RH.

  33. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH (for RH Side)

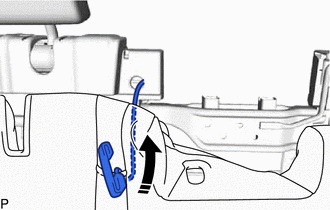

    1. Connect the rear seat belt hook to the separate type rear seatback cover with pad RH.
      GTY845712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

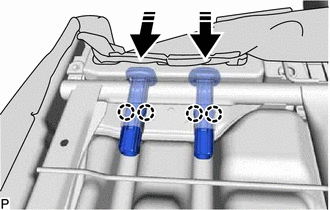

    2. Engage the 4 claws as shown in the illustration to install the 2 rear seat headrest supports.
      GTY840122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the 8 clips.
      GTY939329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 8 hooks.
      GTY897887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 4 fasteners and 4 hooks to install the separate type rear seat cushion cover with pad RH.
      GTY891166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  34. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
    1. Install the rear seat headrest assembly.
  35. INSTALL NO. 2 SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)

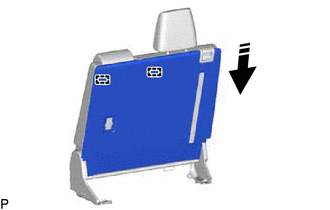

    1. Engage the 2 guides as shown in the illustration.
      GTY873866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

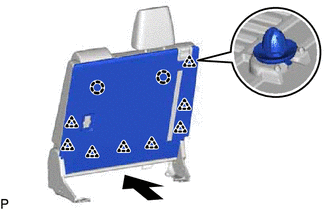

    2. Engage the 8 clips and 2 claws as shown in the illustration to install the No. 2 seatback board sub-assembly RH.
      GTY939331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL REAR NO. 2 SEATBACK COVER (for RH Side)

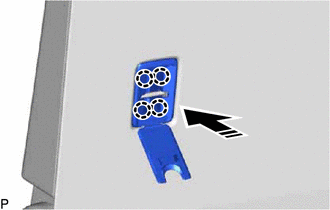

    1. Engage the 4 claws as shown in the illustration to install the rear No. 2 seatback cover.
      GTY880613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 claws as shown in the illustration.
      GTY858873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  38. INSTALL REAR SEATBACK LOCK STRIKER COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  39. INSTALL NO. 2 SEAT NO. 2 HINGE COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  40. INSTALL NO. 2 SEAT HINGE COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  41. INSTALL SEAT ADJUSTER COVER CAP (for RH Side)

    HINT:

    Use the same procedure as for the LH side.
