Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)

    HINT:

    Use the same procedure as for the LH side.

    Refer to REMOVAL [12/2019 - 10/2021] , or refer to REMOVAL [10/2021 - 10/2022]

  3. REMOVE OCCUPANT DETECTION ECU

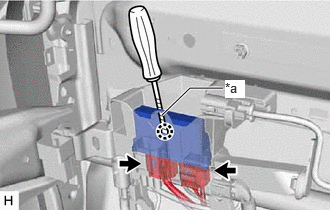

    1. Disconnect the 2 connectors.
      GTY845033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the occupant detection ECU.
