Inspection [12/2019 - 10/2021]: Procedure

  1. INSPECT POWER SEAT LIFTER MOTOR ASSEMBLY LH
    1. Check the operation of the power seat lifter motor assembly LH.

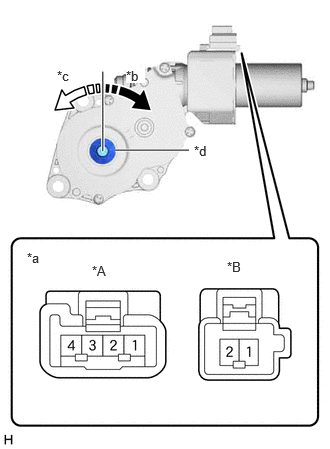

      GTY794492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Memory
      *B w/o Memory
      *a Component without harness connected
      (Power Seat Lifter Motor Assembly LH)
      *b Clockwise
      *c Counterclockwise
      *d Motor Gear
      1. Check that the motor gear rotates smoothly when the auxiliary battery is connected to the connector terminals.

        OK

        W/ MEMORY

        Auxiliary Battery Connection Operational Direction
        Auxiliary battery positive (+) → Terminal 1
        Auxiliary battery negative (-) → Terminal 4        		 Motor gear rotates counterclockwise
        Auxiliary battery positive (+) → Terminal 4
        Auxiliary battery negative (-) → Terminal 1        		 Motor gear rotates clockwise
        W/O MEMORY

        Auxiliary Battery Connection Operational Direction
        Auxiliary battery positive (+) → Terminal 1
        Auxiliary battery negative (-) → Terminal 2        		 Motor gear rotates counterclockwise
        Auxiliary battery positive (+) → Terminal 2
        Auxiliary battery negative (-) → Terminal 1        		 Motor gear rotates clockwise

        If the result is not as specified, replace the power seat lifter motor assembly LH.

  2. INSPECT POWER SEAT TILT MOTOR ASSEMBLY LH

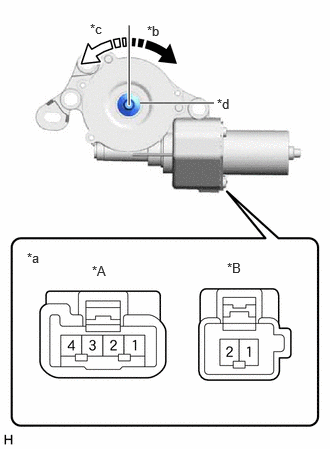

    1. GTY787996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Memory
      *B w/o Memory
      *a Component without harness connected
      (Power Seat Tilt Motor Assembly LH)
      *b Clockwise
      *c Counterclockwise
      *d Motor Gear

      Check the operation of the power seat tilt motor assembly LH.

      1. Check that the motor gear rotates smoothly when the auxiliary battery is connected to the connector terminals.

        OK

        W/ MEMORY

        Auxiliary Battery Connection Operational Direction
        Auxiliary battery positive (+) → Terminal 1
        Auxiliary battery negative (-) → Terminal 4        		 Motor gear rotates counterclockwise
        Auxiliary battery positive (+) → Terminal 4
        Auxiliary battery negative (-) → Terminal 1        		 Motor gear rotates clockwise
        W/O MEMORY

        Auxiliary Battery Connection Operational Direction
        Auxiliary battery positive (+) → Terminal 1
        Auxiliary battery negative (-) → Terminal 2        		 Motor gear rotates counterclockwise
        Auxiliary battery positive (+) → Terminal 2
        Auxiliary battery negative (-) → Terminal 1        		 Motor gear rotates clockwise

        If the result is not as specified, replace the power seat tilt motor assembly LH.
