Components [12/2019 - ]

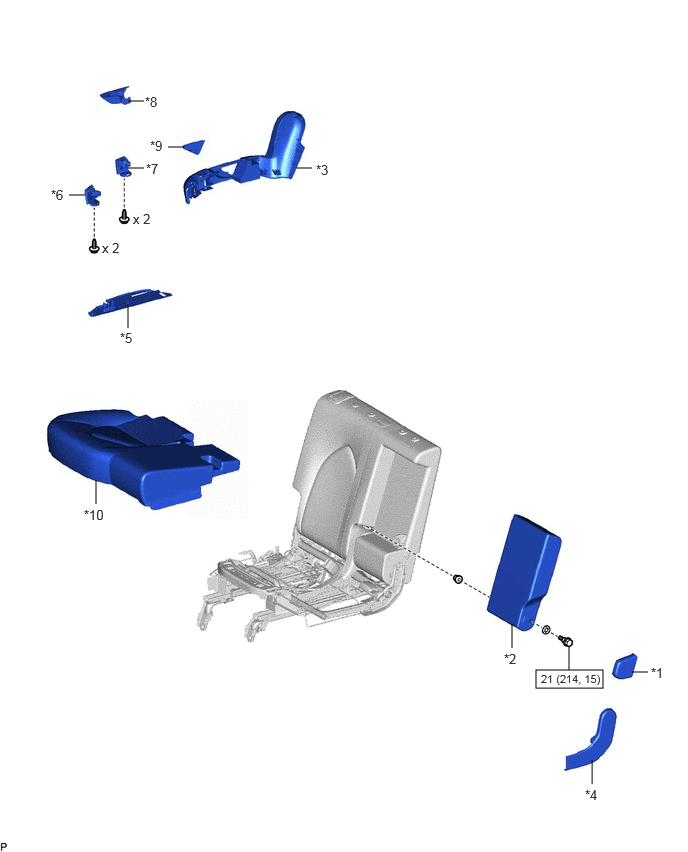

Fig 1: Rear Seatback Heater (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER ARMREST HINGE COVER | *2 | REAR SEAT CENTER ARMREST ASSEMBLY |
| *3 | REAR SEAT CUSHION MOULDING RH | *4 | REAR SEAT CUSHION REAR MOULDING RH |
| *5 | REAR SEAT CUSHION UNDER COVER RH | *6 | REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH |
| *7 | REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH | *8 | RECLINING ADJUSTER RELEASE HANDLE RH |
| *9 | SEAT ADJUSTER COVER CAP RH | *10 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD |

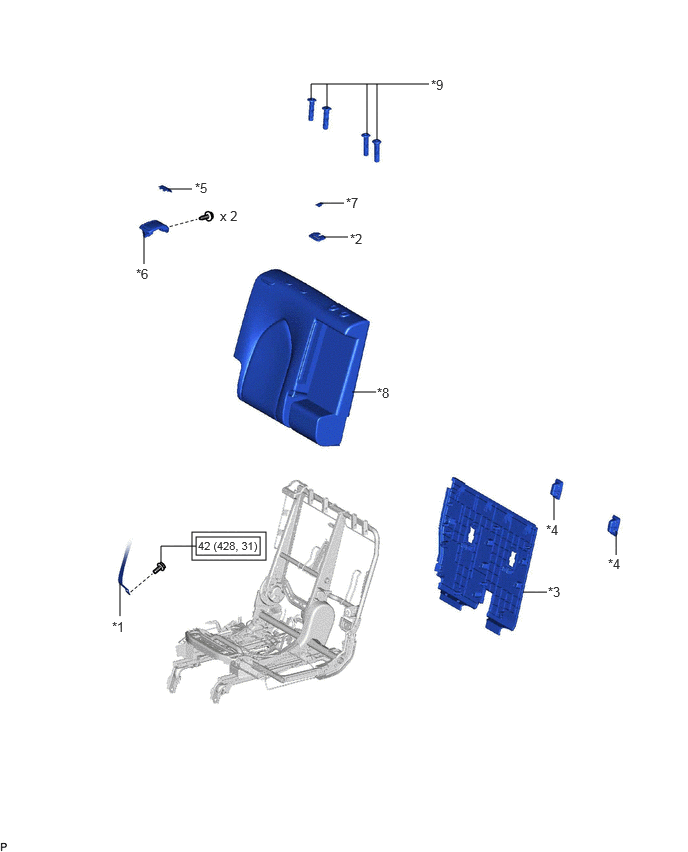

Fig 2: Rear Seatback Heater (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY | *2 | REAR SEAT SHOULDER BELT COVER |
| *3 | REAR SEATBACK BOARD SUB-ASSEMBLY RH | *4 | REAR SEATBACK COVER RH |
| *5 | REAR SEATBACK LOCK STRIKER COVER RH | *6 | RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH |
| *7 | SEAT BELT ANCHOR COVER CAP | *8 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
| *9 | REAR SEAT HEADREST SUPPORT | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

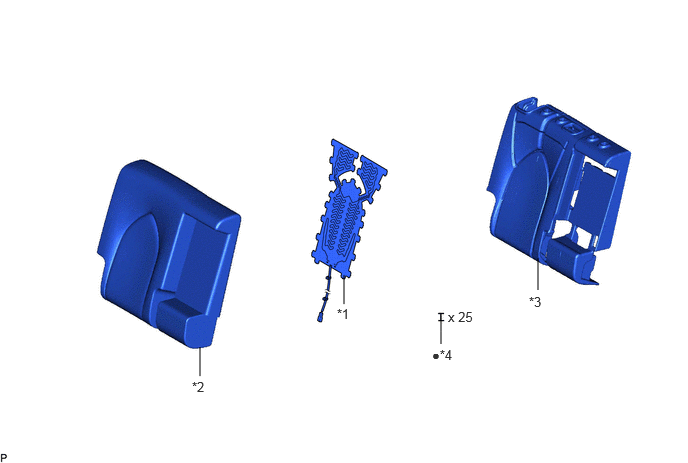

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | SEAT HEATER ASSEMBLY | *2 | SEPARATE TYPE REAR SEATBACK COVER |
| *3 | SEPARATE TYPE REAR SEATBACK PAD | *4 | TAG PIN |
| • | Non-reusable part | - | - |
