Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY RH

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

    Refer to PROCEDURE - Step 6

  3. REMOVE REAR SEAT CUSHION UNDER COVER RH

    Refer to PROCEDURE - Step 7

  4. REMOVE SEAT ADJUSTER COVER CAP RH

    Refer to PROCEDURE - Step 8

  5. REMOVE REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  6. REMOVE REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  7. REMOVE REAR SEAT CUSHION MOULDING RH

    Refer to PROCEDURE - Step 11

  8. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 12

  9. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER

    Refer to PROCEDURE - Step 13

  10. REMOVE SEAT HEATER ASSEMBLY

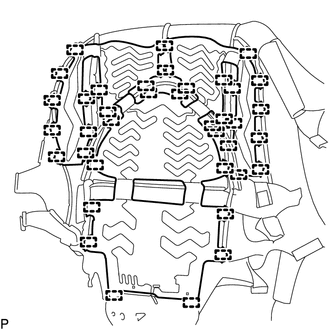

    1. Remove the 38 tag pins and seat heater assembly from the separate type rear seat cushion cover.
