Components [12/2019 - ]

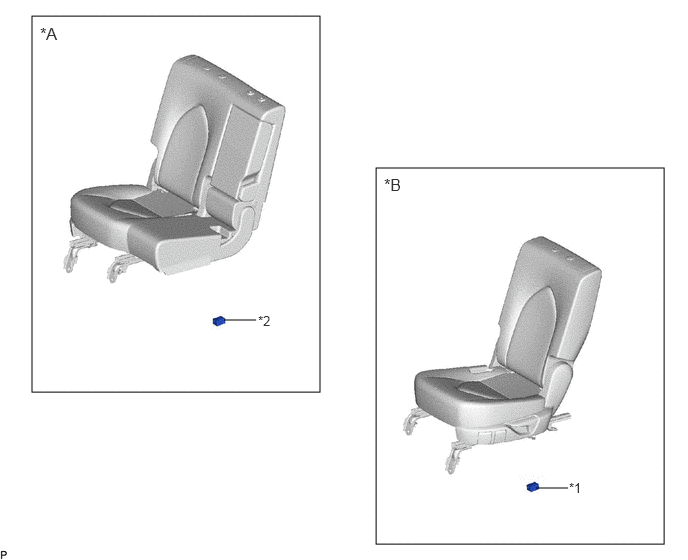

Fig 1: Seat Heater Control (For Rear Side) Replacement Components (1 Of 2)
GTY908271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 60/40 Split Seat Type RH Side *B for 60/40 Split Seat Type LH Side
*1 SEAT HEATER CONTROL SUB-ASSEMBLY LH *2 SEAT HEATER CONTROL SUB-ASSEMBLY RH

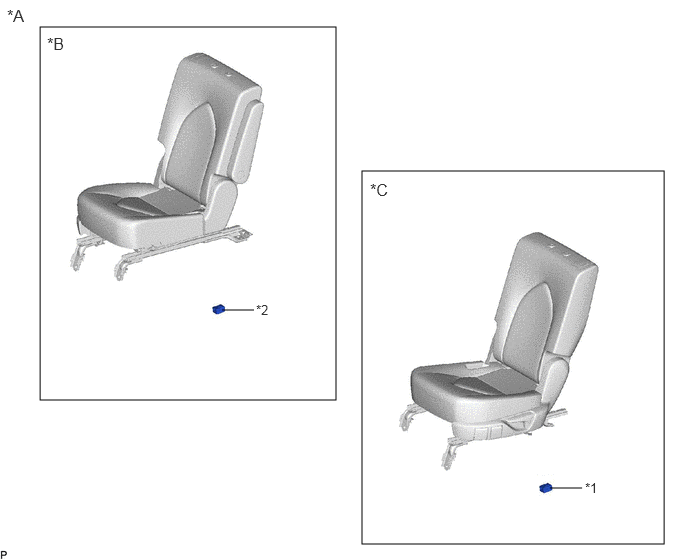

Fig 2: Seat Heater Control (For Rear Side) Replacement Components (2 Of 2)
GTY914180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Captain Seat Type *B for RH Side
*C for LH Side - -
*1 SEAT HEATER CONTROL SUB-ASSEMBLY LH *2 SEAT HEATER CONTROL SUB-ASSEMBLY RH
