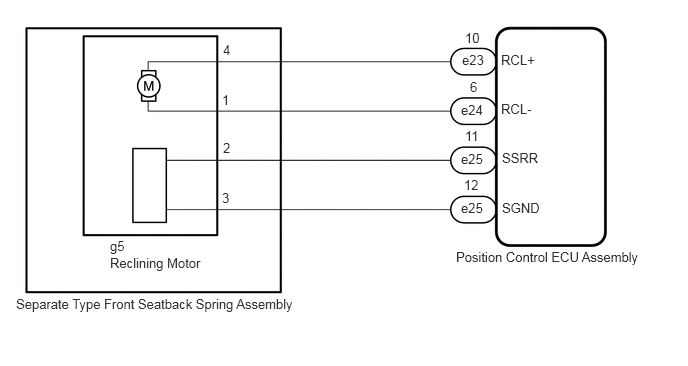

DTC B2651: Reclining Sensor Malfunction [12/2019 - ]: Wiring Diagram

GTY920331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
