FRONT POWER SEAT CONTROL SYSTEM (w/ Memory)
>>
One or more Power Seat Motors do not Operate [12/2019 - ]
>>
Wiring Diagram

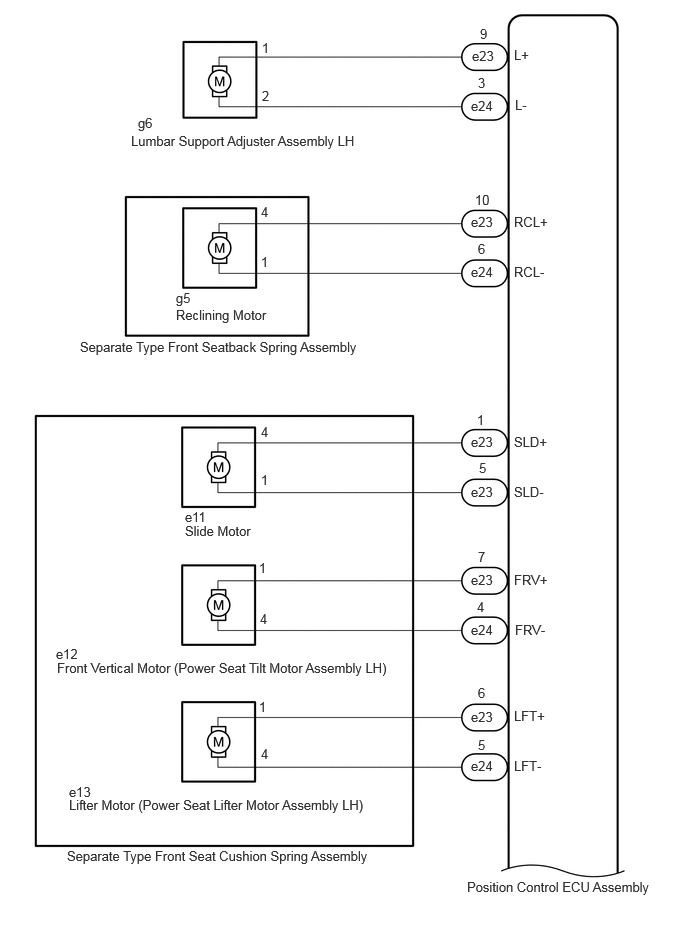

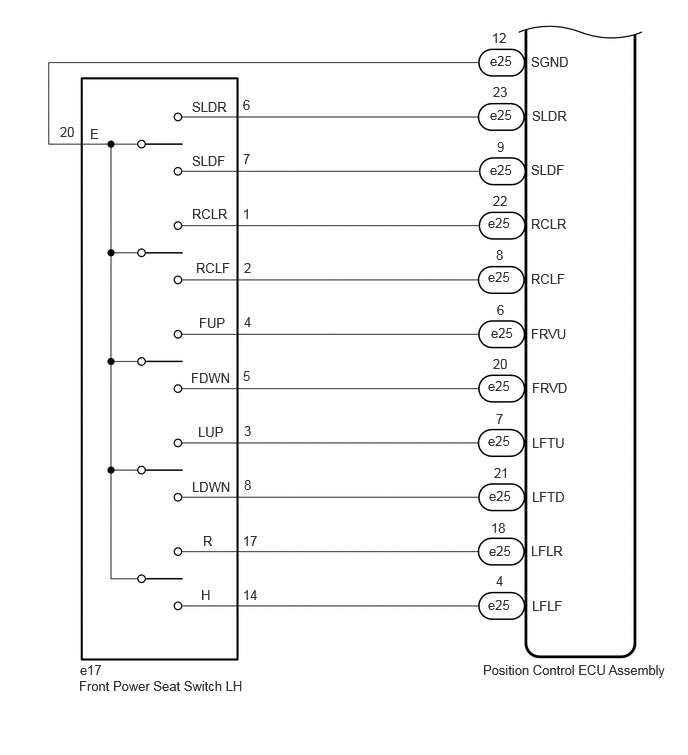

One or more Power Seat Motors do not Operate [12/2019 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
