Parts Location [12/2019 - 11/2023]: Illustration

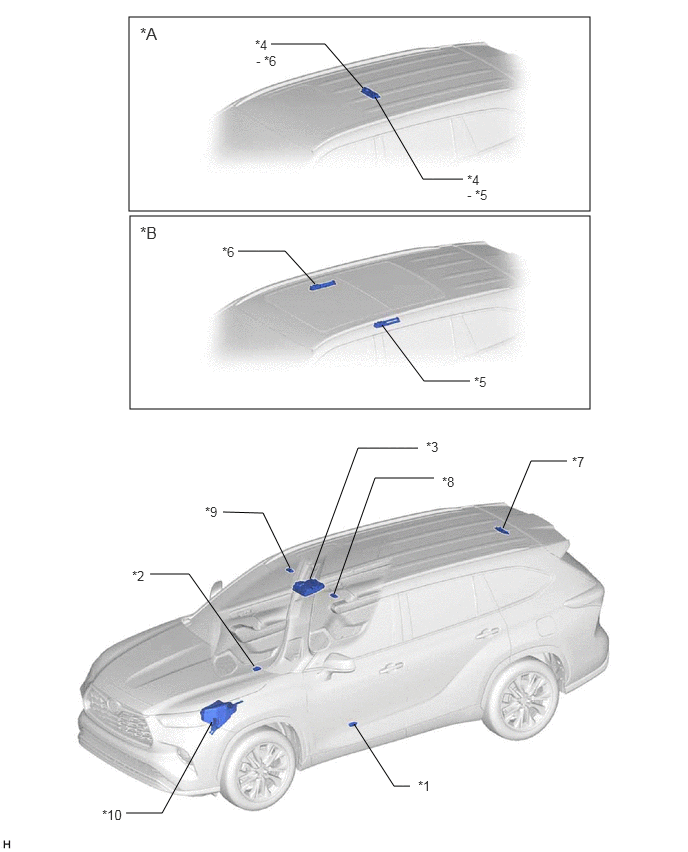

| *A | Except Panoramic Moon Roof | *B | For Panoramic Moon Roof |
| *1 | COURTESY LIGHT ASSEMBLY LH | *2 | COURTESY LIGHT ASSEMBLY RH |
| *3 | MAP LIGHT ASSEMBLY | *4 | SPOT LIGHT ASSEMBLY |
| *5 | SPOT LIGHT ASSEMBLY LH | *6 | SPOT LIGHT ASSEMBLY RH |
| *7 | NO. 1 ROOM LIGHT ASSEMBLY | *8 | VANITY LIGHT ASSEMBLY (for LH) |
| *9 | VANITY LIGHT ASSEMBLY (for RH) | *10 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - J/B FUSE |

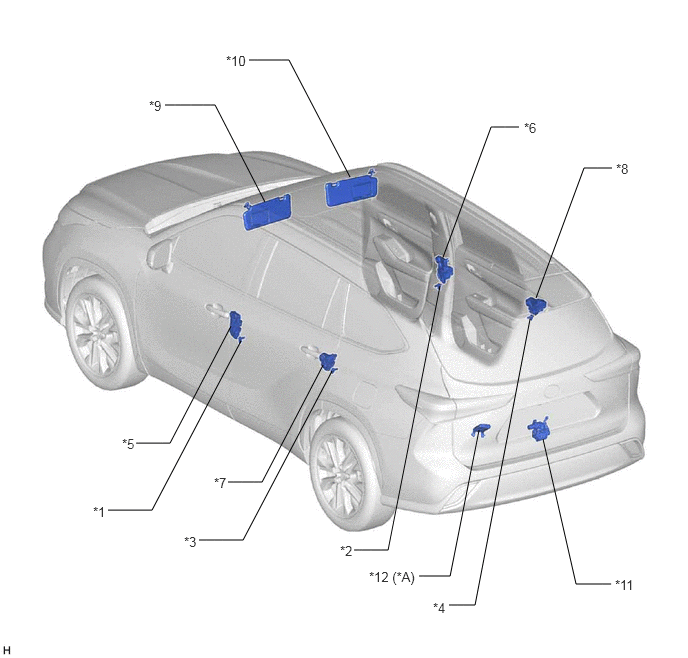

| *A | w/ Power Back Door System | - | - |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *4 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *9 | VISOR ASSEMBLY LH | *10 | VISOR ASSEMBLY RH |
| *11 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH | *12 | MULTIPLEX NETWORK DOOR ECU |

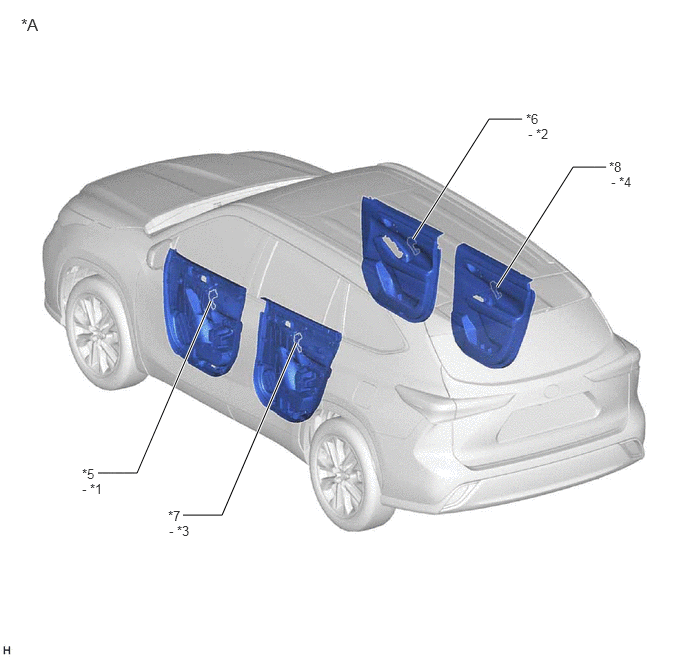

| *A | w/ Ambient Illumination Light | - | - |
| *1 | FRONT DOOR AMBIENT LIGHT LH | *2 | FRONT DOOR AMBIENT LIGHT RH |
| *3 | REAR DOOR AMBIENT LIGHT LH | *4 | REAR DOOR AMBIENT LIGHT RH |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH | *6 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH |
| *7 | REAR DOOR TRIM BOARD SUB-ASSEMBLY LH | *8 | REAR DOOR TRIM BOARD SUB-ASSEMBLY RH |

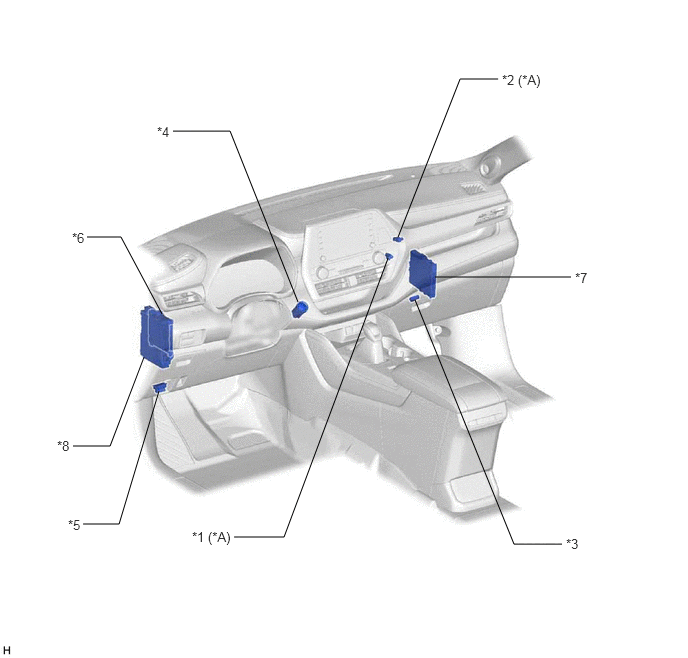

| *A | w/ Ambient Illumination Light | - | - |
| *1 | CENTER TRAY ILLUMINATION LIGHT (NO. 1 INSTRUMENT PANEL LIGHT SUB-ASSEMBLY) | *2 | FRONT PASSENGER SIDE TRAY ILLUMINATION LIGHT (NO. 1 INSTRUMENT PANEL LIGHT SUB-ASSEMBLY) |
| *3 | GLOVE BOX LIGHT ASSEMBLY | *4 | PUSH START SWITCH |
| *5 | DLC3 | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC RELAY - IG1-NO. 1 RELAY - DOME CUT RELAY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE - DOME FUSE |
