System Diagram [12/2019 - 11/2023]

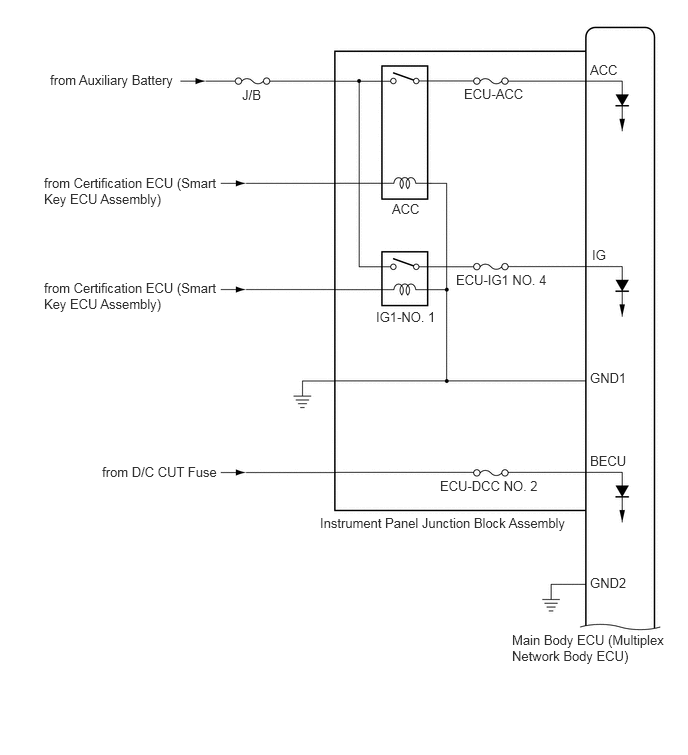

Fig 1: Lighting System Diagram [12/2019 - 11/2023] (1 Of 4)
GTY906030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

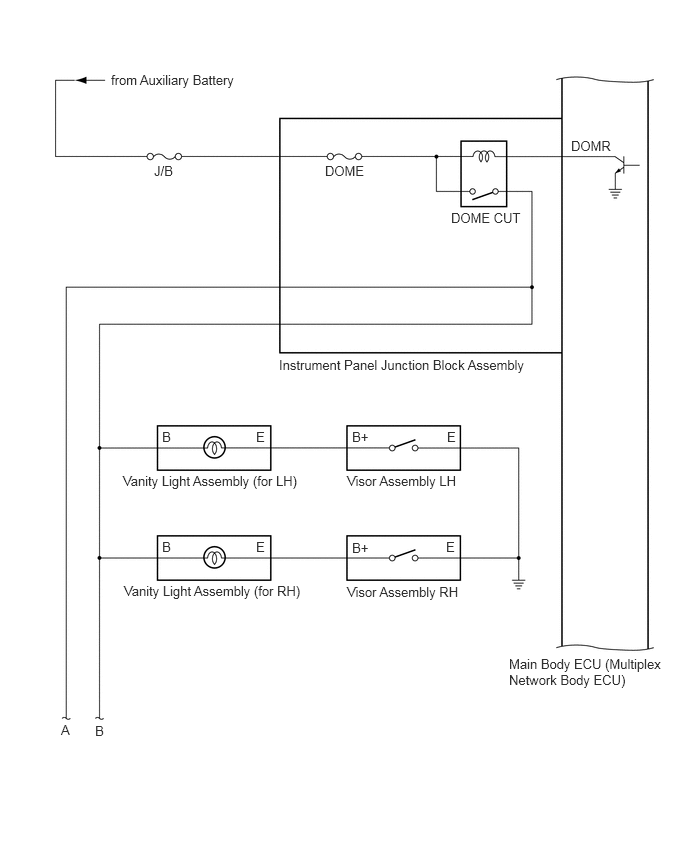

Fig 2: Lighting System Diagram [12/2019 - 11/2023] (2 Of 4)
GTY864845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

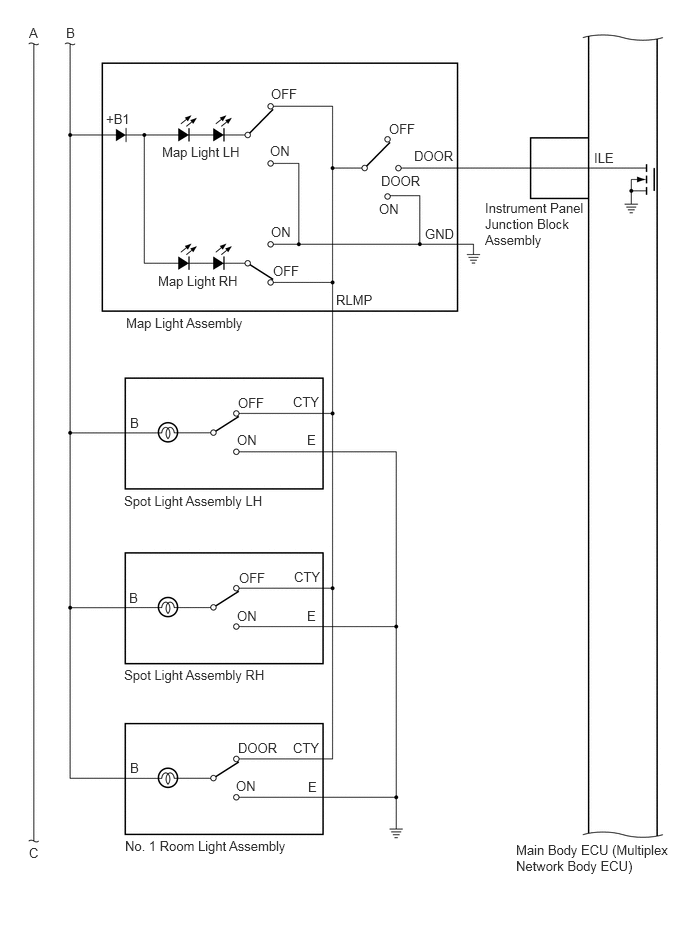

Fig 3: Lighting System Diagram [12/2019 - 11/2023] (3 Of 4)
GTY869395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

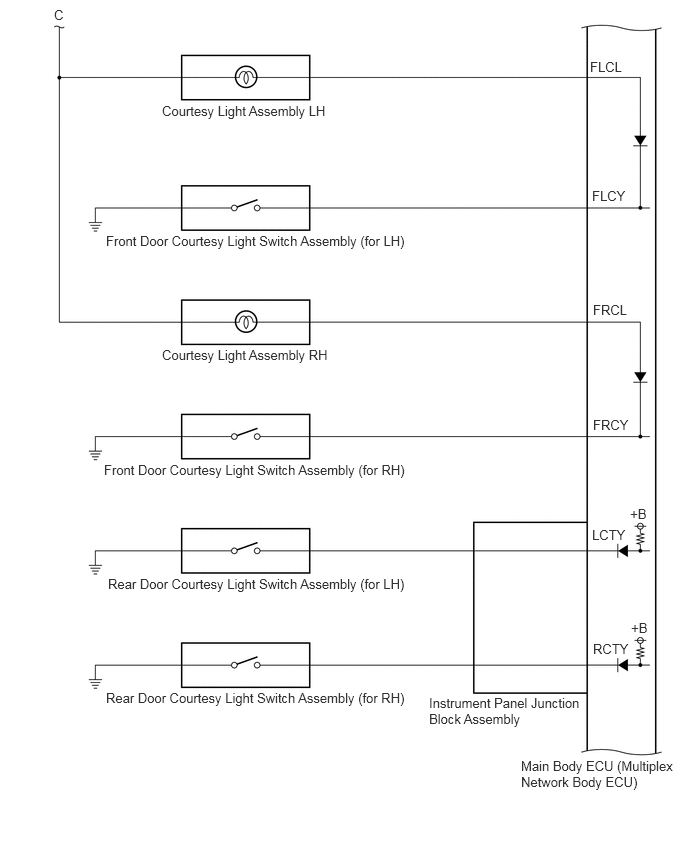

Fig 4: Lighting System Diagram [12/2019 - 11/2023] (4 Of 4)
GTY874479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Ambient Illumination Light:

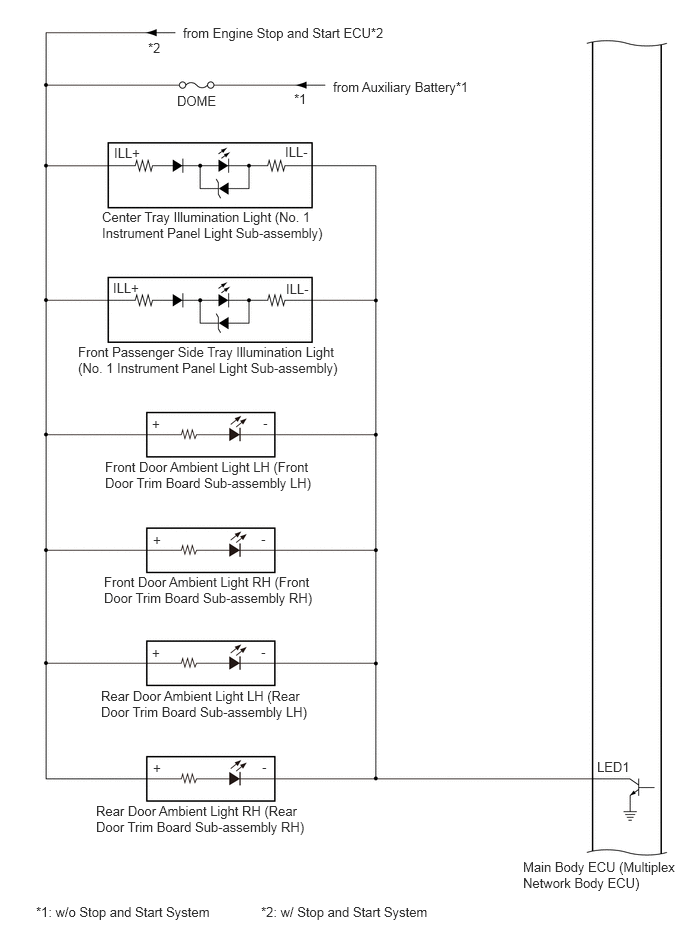

Fig 5: w/ Ambient Illumination Light: [12/2019 - 11/2023] (1 Of 4)
GTY878269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

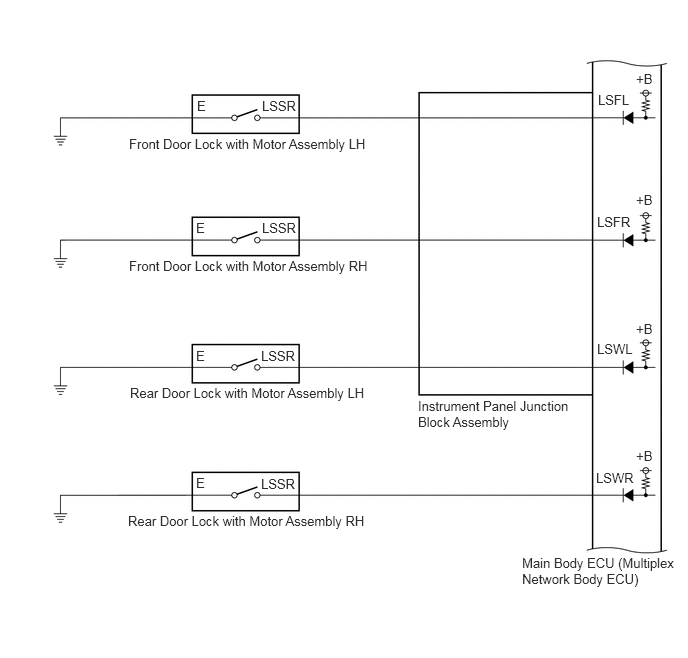

Fig 6: w/ Ambient Illumination Light: [12/2019 - 11/2023] (2 Of 4)
GTY884360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

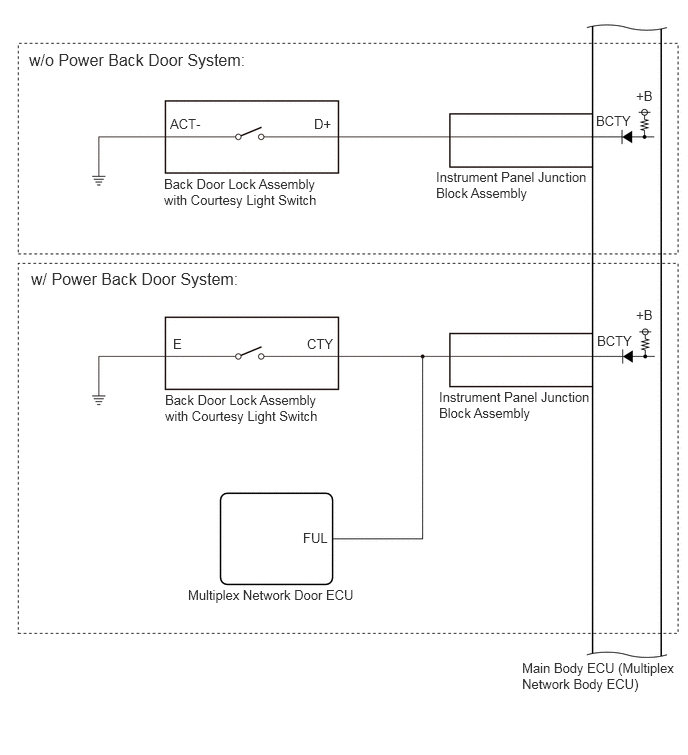

Fig 7: w/ Ambient Illumination Light: [12/2019 - 11/2023] (3 Of 4)
GTY889990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

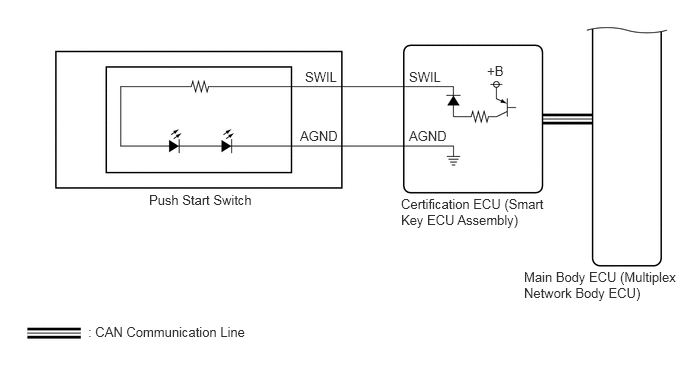

Fig 8: w/ Ambient Illumination Light: [12/2019 - 11/2023] (4 Of 4)
GTY937260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
