Rear Door Courtesy Switch Circuit [12/2019 - 11/2023]: Procedure

1. Read the Data List according to the display on the GTS.

   Body Electrical > Main Body > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   RR Door Courtesy SW	Rear door courtesy light switch assembly (for RH) signal	OFF or ON	OFF: Rear door RH closed ON: Rear door RH open	-
   RL Door Courtesy SW	Rear door courtesy light switch assembly (for LH) signal	OFF or ON	OFF: Rear door LH closed ON: Rear door LH open	-

   Body Electrical > Main Body > Data List

   Tester Display
   RR Door Courtesy SW
   RL Door Courtesy SW

   OK

   Normal conditions listed above are displayed.

   Result

   Result	Proceed to
   OK	A
   NG ("RR Door Courtesy SW" is not normal)	B
   NG ("RL Door Courtesy SW" is not normal)	C

Result:

A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [12/2019 - 11/2023]

Result:

C

See step  5

Result:

B

See step  2

Refer to INSPECTION [12/2019 - ]

Result

Result:

NG

REPLACE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH). Refer to  REMOVAL [12/2019 - ]

Result:

OK

See step  3

1. Disconnect the 4A instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M4-1 - 4A-31	Always	Below 1 Ω
   M4-1 or 4A-31 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

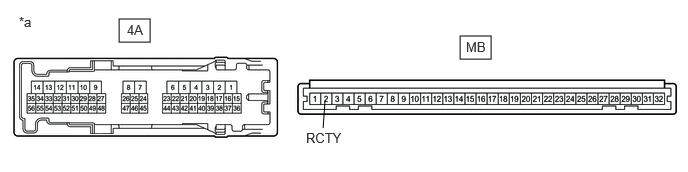

1. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

   Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   4A-31 - MB-2 (RCTY)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

Result:

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

Refer to INSPECTION [12/2019 - ]

Result

Result:

NG

REPLACE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH). Refer to  REMOVAL [12/2019 - ]

Result:

OK

See step  6

1. Disconnect the 4D instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M48-1 - 4D-24	Always	Below 1 Ω
   M48-1 or 4D-24 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

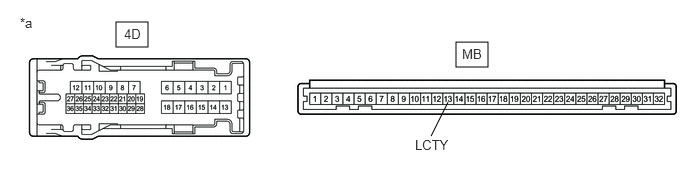

1. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

   Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   4D-24 - MB-13 (LCTY)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

Result:

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]
