Lighting System (Int) - Diagnostics & Circuit Tests (1 Of 2)
>>
Lighting System
>>
Rear Door Courtesy Switch Circuit [11/2023 - ]
>>
Wiring Diagram
Rear Door Courtesy Switch Circuit [11/2023 - ]: Wiring Diagram

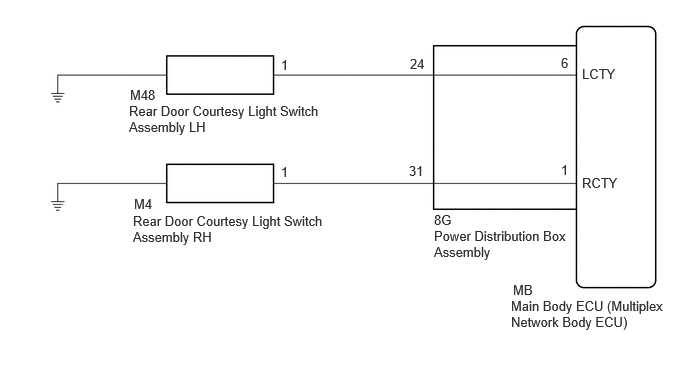

Fig 1: Rear Door Courtesy Switch Circuit [11/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
