Back Door Courtesy Switch Circuit: Procedure

  1. READ VALUE USING GTS
    1. Read the Data List according to the display on the GTS.

      Body Electrical > Main Body > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Back Door Courtesy SW Back door courtesy light switch signal OFF or ON OFF: Back door closed
      ON: Back door open      		 -

      Body Electrical > Main Body > Data List

      Tester Display
      Back Door Courtesy SW

      OK

      Normal conditions listed above are displayed.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [12/2019 - 11/2023]

    Result:

    NG

    See step  2

  2. INSPECT BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

    Refer to INSPECTION [12/2019 - ]

    Result

    Result Proceed to
    OK (w/o Power Back Door System) A
    OK (w/ Power Back Door System) B
    NG C

    Result:

    B

    See step  5

    Result:

    C

    REPLACE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH. Refer to  REMOVAL [12/2019 - ]

    Result:

    A

    See step  3

  3. CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND BODY GROUND)
    1. Disconnect the 4D instrument panel junction block assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W12-3 (D+) - 4D-34 Always Below 1 Ω
      W12-3 (D+) or 4D-34 - Body ground Always 10 kΩ or higher
      W12-2 (ACT-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

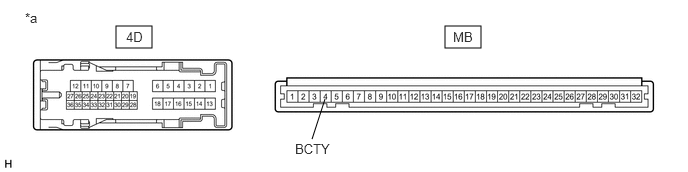

    GTY891516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

      Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      4D-34 - MB-4 (BCTY) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

  5. CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND BODY GROUND)
    1. Disconnect the 4D instrument panel junction block assembly connector.
    2. Disconnect the W18 multiplex network door ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W14-4 (CTY) - 4D-34 Always Below 1 Ω
      W14-4 (CTY) or 4D-34 - Body ground Always 10 kΩ or higher
      W14-1 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    GTY891516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

      Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      4D-34 - MB-4 (BCTY) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]
