Lighting System (Int) - Diagnostics & Circuit Tests (1 Of 2)
>>
Lighting System
>>
Interior Light Circuit [12/2019 - 11/2023]
>>

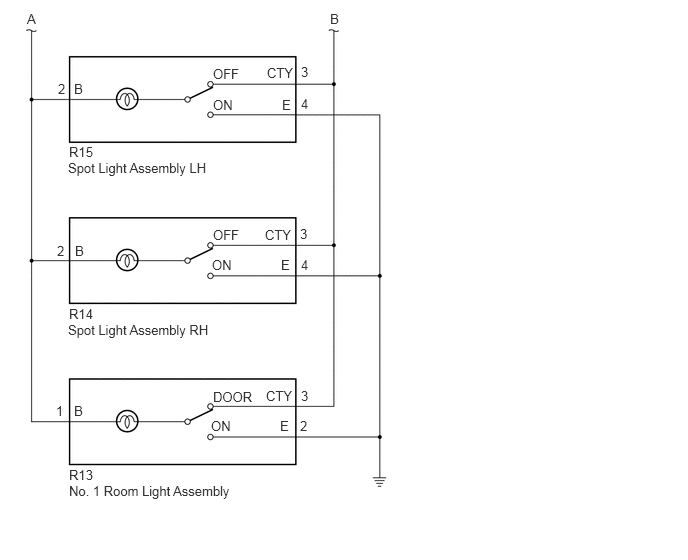

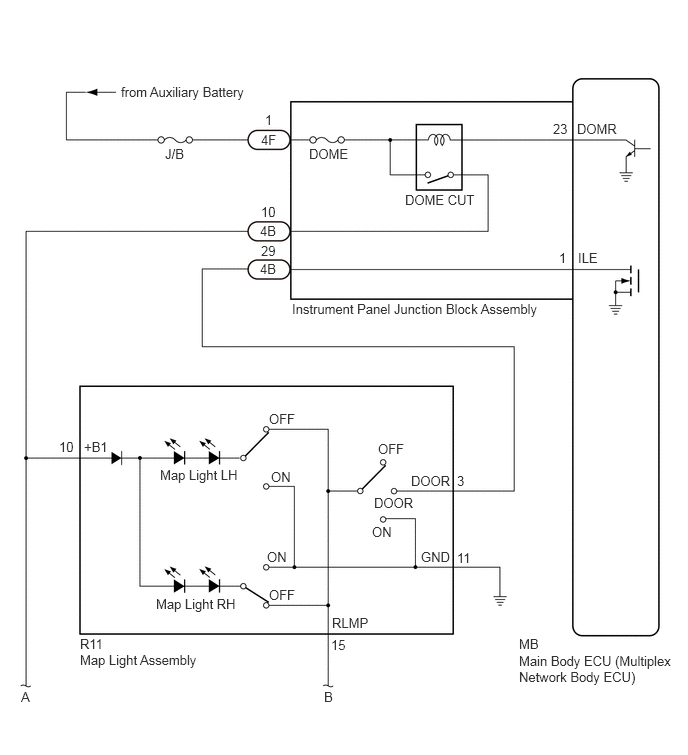

Wiring Diagram
Interior Light Circuit [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
