Removal [12/2019 - ]: Procedure

  1. REMOVE VANITY LIGHT ASSEMBLY
    1. Using a moulding remover, disengage the claw.
      GTY846254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side

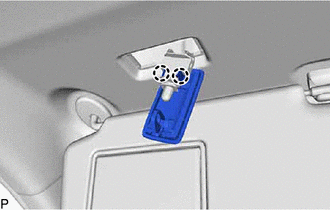

    2. Disengage the 2 claws to remove the vanity light assembly from the bulb holder.
      GTY923235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE VANITY LIGHT BULB

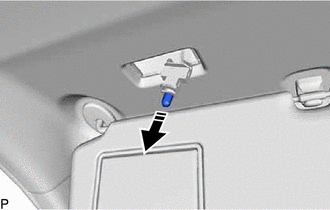

    1. Remove the vanity light bulb from the bulb holder as shown in the illustration.
      GTY858965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
