Installation [12/2019 - ]: Procedure

  1. INSTALL VANITY LIGHT BULB

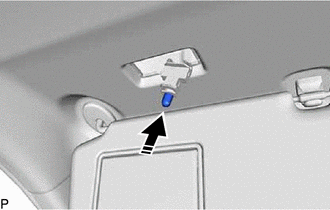

    1. Install the vanity light bulb to the bulb holder as shown in the illustration.
      GTY854230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL VANITY LIGHT ASSEMBLY

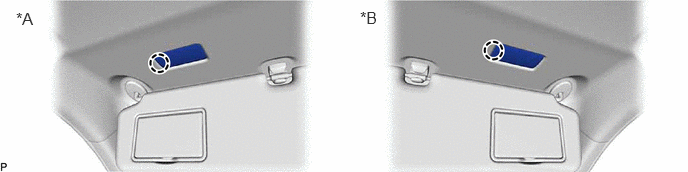

    1. Engage the 2 claws to install the vanity light assembly to the bulb holder.
    2. Engage the claw to install the vanity light assembly.
      GTY869479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
