Replacement [12/2019 - ]: Procedure

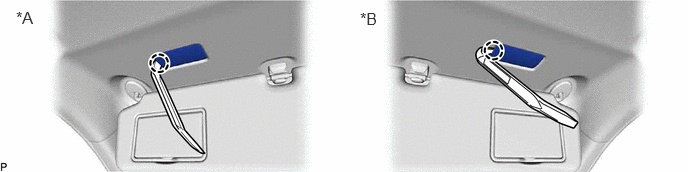

  1. SEPARATE VANITY LIGHT ASSEMBLY
    1. Using a moulding remover, disengage the claw to separate the vanity light assembly.
      GTY846254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side

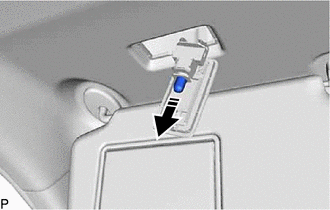

  2. REMOVE VANITY LIGHT BULB
    1. Remove the vanity light bulb from the bulb holder as shown in the illustration.
      GTY901032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. INSTALL VANITY LIGHT BULB
    1. Install the vanity light bulb to the bulb holder as shown in the illustration.
      GTY941119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL VANITY LIGHT ASSEMBLY
    1. Engage the claw to install the vanity light assembly.
      GTY869479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
