Removal [12/2019 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

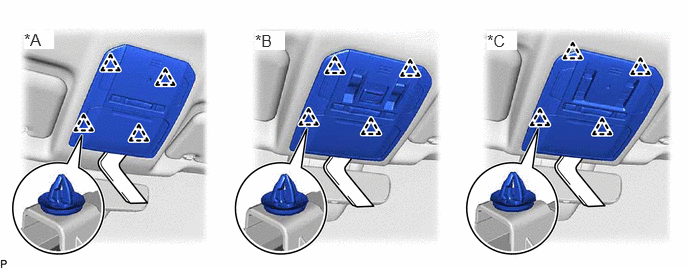

    1. Using a moulding remover, disengage the 4 clips.
      GTY885303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Normal Roof *B for Moon Roof
      *C for Panoramic Moon Roof - -
    2. Disconnect the connector to remove the map light assembly.
