Disassembly [12/2019 - ]: Procedure

  1. REMOVE ROOF CONSOLE PLATE

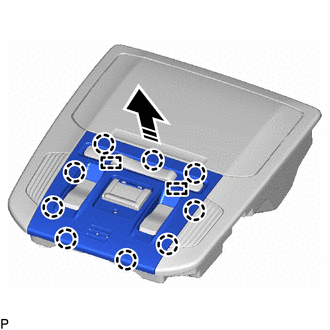

    1. Disengage the 9 claws and 2 guides to remove the roof console plate as shown in the illustration.
      GTY1122038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE ROOF CONSOLE BOX COVER

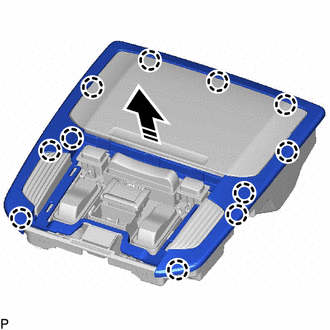

    1. Disengage the 11 claws to remove the roof console box cover as shown in the illustration.
      GTY1121312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE ROOF CONSOLE BASE

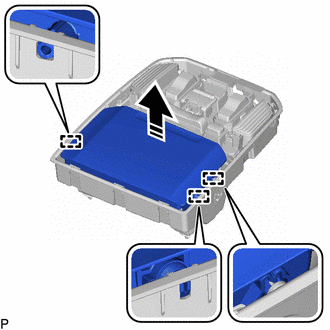

    1. Disengage the 3 guides and remove the sunglasses case from the back plate as shown in the illustration.
      GTY1121145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

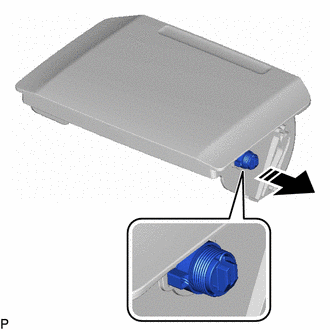

    2. Remove the roof console base as shown in the illustration.
      GTY1119657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
