Reassembly [12/2019 - ]: Procedure

  1. INSTALL ROOF CONSOLE BASE

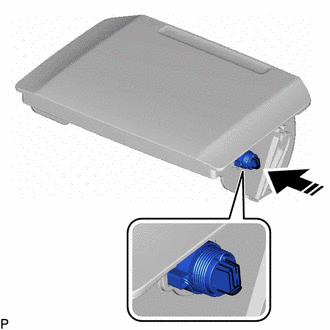

    1. Install the roof console base as shown in the illustration.
      GTY1121252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

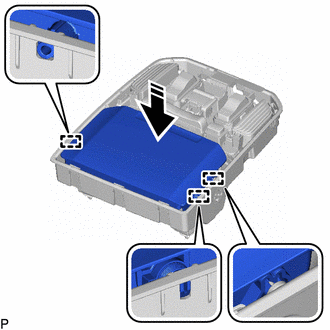

    2. Engage the 3 guides to install the sunglasses case to the back plate as shown in the illustration.
      GTY1120451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL ROOF CONSOLE BOX COVER

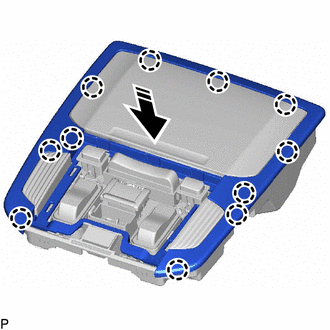

    1. Engage the 11 claws to install the roof console box cover as shown in the illustration.
      GTY1122060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL ROOF CONSOLE PLATE

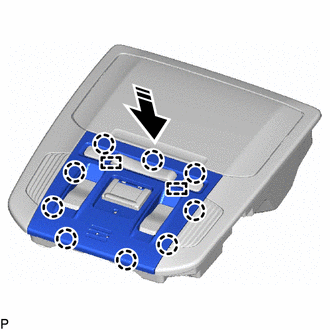

    1. Engage the 2 guides and 9 claws to install the roof console plate as shown in the illustration.
      GTY1119693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
