Components [12/2019 - ]

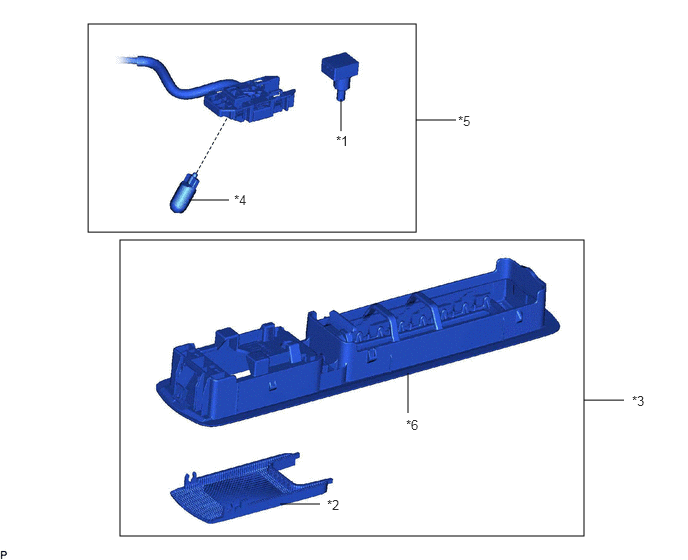

Fig 1: Room Light (For Panoramic Moon Roof) Replacement Components
GTY906512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MAP LIGHT SWITCH *2 NO. 2 SPOT LIGHT LENS
*3 SPOT LIGHT ASSEMBLY *4 SPOT LIGHT BULB
*5 MAP LIGHT SUB-ASSEMBLY *6 SPOT LIGHT HOUSING
