Removal [12/2019 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE SPOT LIGHT ASSEMBLY

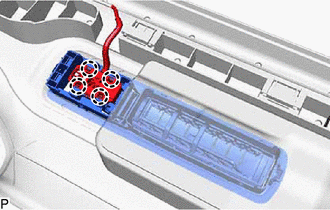

    1. Disengage the 4 claws to remove the map light sub-assembly.
      GTY944984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

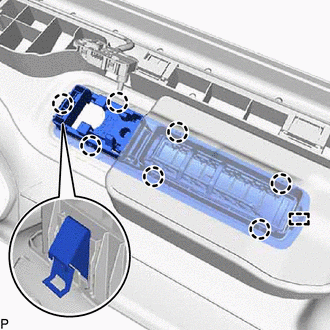

    2. Disengage the 7 claws and guide to remove the spot light assembly.
      GTY923416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 SPOT LIGHT LENS

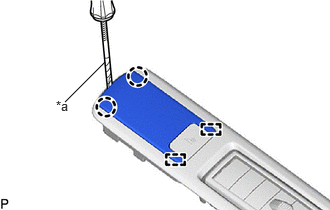

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and 2 guides to remove the No. 2 spot light lens.
      GTY915595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  4. REMOVE SPOT LIGHT BULB
    1. Remove the spot light bulb from the map light sub-assembly.
  5. REMOVE MAP LIGHT SWITCH
    1. Disengage the 2 guides to remove the map light switch as shown in the illustration.
      GTY848276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
