Components [12/2019 - ]

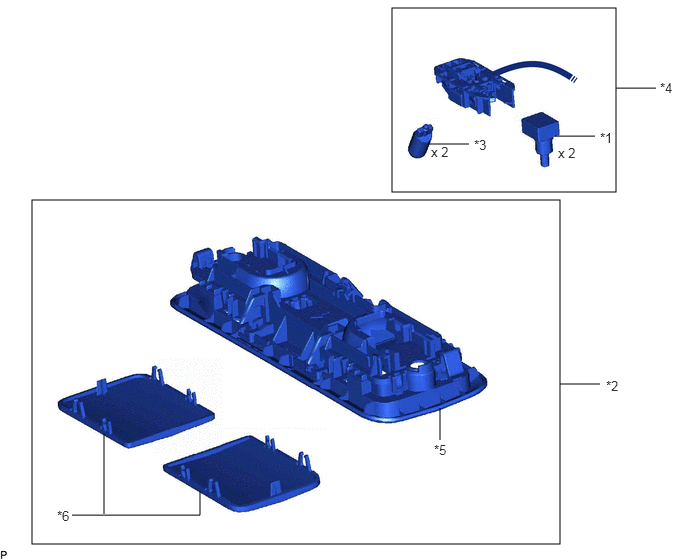

Fig 1: Room Light (Except Panoramic Moon Roof) Replacement Components
GTY880905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MAP LIGHT SWITCH *2 SPOT LIGHT ASSEMBLY
*3 SPOT LIGHT BULB *4 MAP LIGHT SUB-ASSEMBLY
*5 SPOT LIGHT HOUSING *6 SPOT LIGHT LENS
