Removal [12/2019 - ]: Procedure

REMOVE SPOT LIGHT ASSEMBLY

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the spot light lens.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Front

HINT:

Use the same procedure for the RH side and LH side.

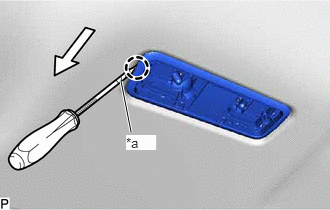

Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Front

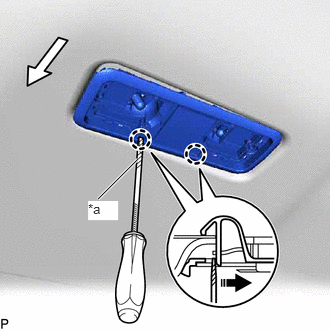

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

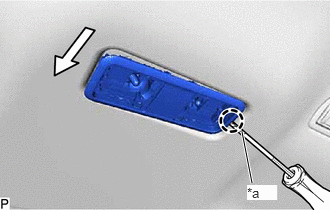

Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Front

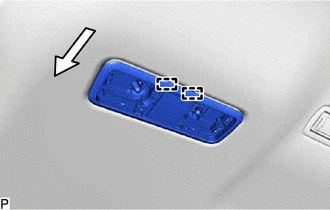

Disengage the 2 guides to separate the spot light housing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front

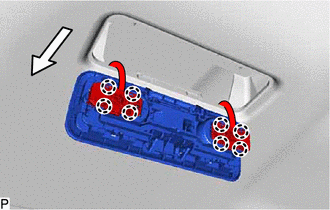

Disengage the 8 claws to remove the spot light housing from the map light sub-assembly.

Front

REMOVE SPOT LIGHT BULB
1. Remove the spot light bulb from the map light sub-assembly.
  HINT:

  Use the same procedure for the RH side and LH side.

REMOVE MAP LIGHT SWITCH

Disengage the 2 guides to remove the map light switch as shown in the illustration.

Remove in this Direction

HINT:

Use the same procedure for the RH side and LH side.
