Replacement [12/2019 - ]: Procedure

  1. REMOVE SPOT LIGHT BULB (except Panoramic Moon Roof)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the spot light lens.

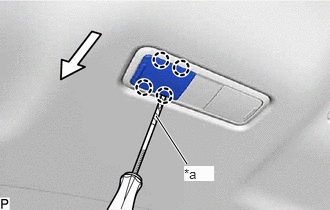

      GTY939693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Front
    2. Remove the spot light bulb from the map light sub-assembly as shown in the illustration.

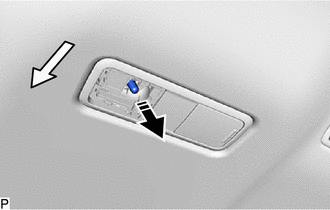

      GTY864830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
      Remove in this Direction
  2. INSTALL SPOT LIGHT BULB (except Panoramic Moon Roof)
    1. Install the spot light bulb to the map light sub-assembly as shown in the illustration.

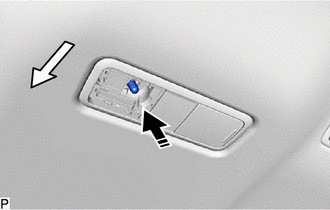

      GTY879288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
      Install in this Direction
    2. Engage the 4 claws to install the spot light lens.

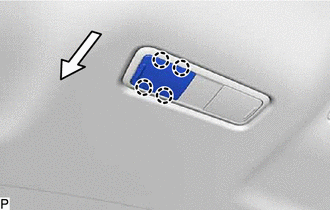

      GTY841189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
  3. REMOVE NO. 2 SPOT LIGHT LENS (for Panoramic Moon Roof)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and 2 guides to remove the No. 2 spot light lens.

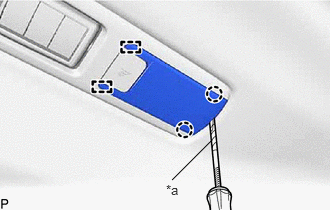

      GTY924491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  4. REMOVE SPOT LIGHT BULB (for Panoramic Moon Roof)
    1. Remove the spot light bulb from the map light sub-assembly as shown in the illustration.

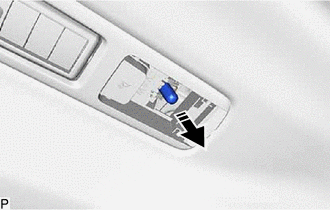

      GTY944012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. INSTALL SPOT LIGHT BULB (for Panoramic Moon Roof)
    1. Install the spot light bulb to the map light sub-assembly as shown in the illustration.

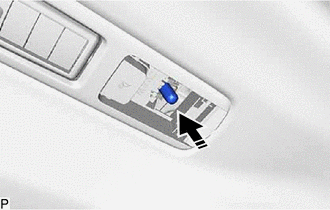

      GTY848708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  6. INSTALL NO. 2 SPOT LIGHT LENS (for Panoramic Moon Roof)
    1. Engage the 2 claws and 2 guides to install the No. 2 spot light lens.

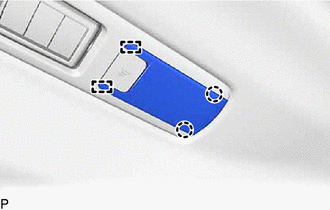

      GTY915896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
