Removal [12/2019 - ]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the room light lens.
      GTY870811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Front

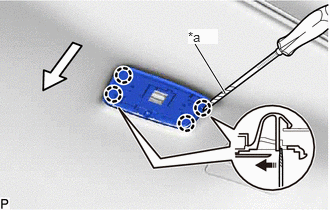

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws as shown in the illustration to separate the room light housing.
      GTY887232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Front
      Remove in this Direction

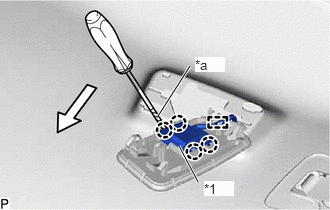

    3. Disengage the clamp.
      GTY935603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Room Light Switch Base
      *a Protective Tape
      Front
    4. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the room light housing from the room light switch base.
  2. REMOVE ROOM LIGHT BULB
    1. Remove the room light bulb from the room light switch base.
