Replacement [12/2019 - ]: Procedure

  1. REMOVE ROOM LIGHT BULB

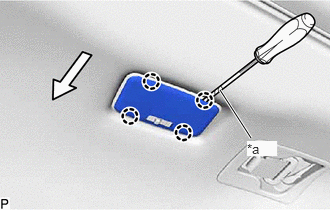

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the room light lens.
      GTY870811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Front

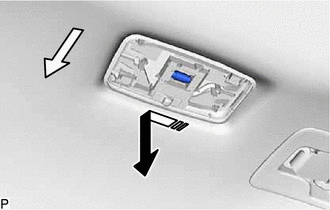

    2. Remove the room light bulb from the room light switch base as shown in the illustration.
      GTY910709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
      Remove in this Direction
  2. INSTALL ROOM LIGHT BULB
    1. Install the room light bulb to the room light switch base.
    2. Engage the 4 claws to install the room light lens.
      GTY911275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
