Installation [12/2019 - ]: Procedure

  1. INSTALL COURTESY LIGHT BULB
    1. Install the courtesy light bulb to the courtesy light housing as shown in the illustration.
      GTY545755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the courtesy light cover to the courtesy light housing as shown in the illustration.
      GTY558343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the claw to install the courtesy light housing with the courtesy light cover as shown in the illustration.
      GTY566448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL COURTESY LIGHT ASSEMBLY
    1. Connect the connector.
    2. Engage the claw to install the courtesy light assembly.

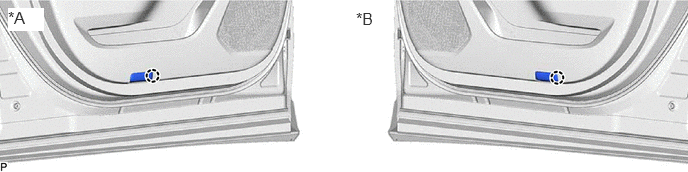

      GTY869485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
